FM11NT021TT chip has an 180bytes EEPROM memory embedded. FM11NT021TT contains the RF-Interface and the Digital Control Unit. Energy and data are transferred via an antenna, which consists of a coil with a few turns directly connected to the IN1 and IN2 of the FM11NT021TT.
FM11NT021TT has a dedicated function which is named open sense or tamper detection. A wire connects the DP pad and the GND pad when the tag is made. If this wire is open, the chip can detect this state and send this message to the reader when being checked. This function can be used in applications such as anti-counterfeit or smart packages.
1.1 Introduction
FM11NT021TT is primarily designed for NFC Forum Type 2 Tag applications. Please consult us for more documents.
1.2 Features
1.2.1 RF Interface
ISO/IEC 14443A
Contactless transmission of data and supply energy (no battery needed)
Operating distance: up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)
Operating frequency: 13.56 MHz
Fast data transfer: 106 Kbit/s
High data integrity: 16-bit CRC, parity, bit coding, bit counting
7 byte UID (cascade level 2 according to ISO/IEC 14443-3)
Fast read command
Read times counter function
Open sense function (Tamper detection)
1.2.2 EEPROM
user memory: 144 bytes (36 pages)
4 bytes initialized capability container with one time programmable access bits
Field programmable read-only locking function per page for the first 16 pages
Field programmable read-only locking function above the first 16 pages per double page
Data retention of 10 years
Write endurance 500,000 cycles
1.2.3 NFC Forum Tag 2 Type compliance
FM11NT021TT provides full compliance to the NFC Forum Type 2 Tag technical specification and enables NDEF data structure configuration.
1.2.4 Security
Manufacturer programmed 7-byte UID for each chip
Anti-tearing support for capability container (CC) and lock bits
Field programmable read-only locking function

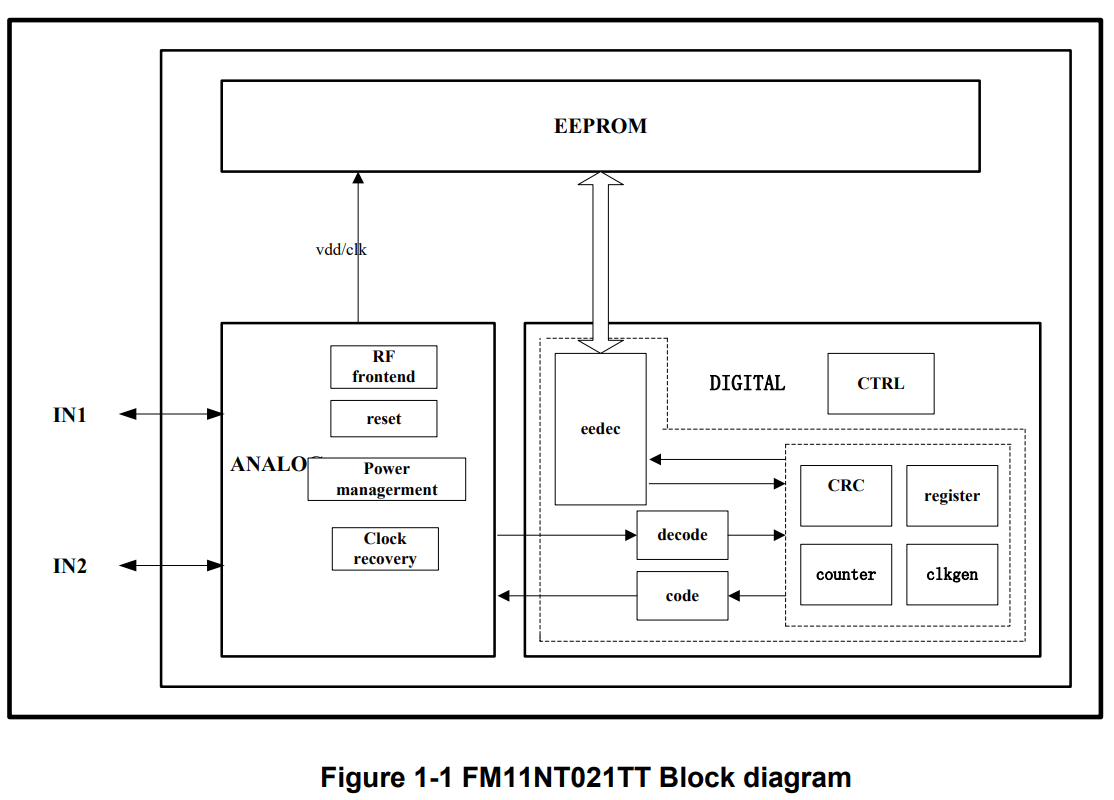

1.3 Block Diagram

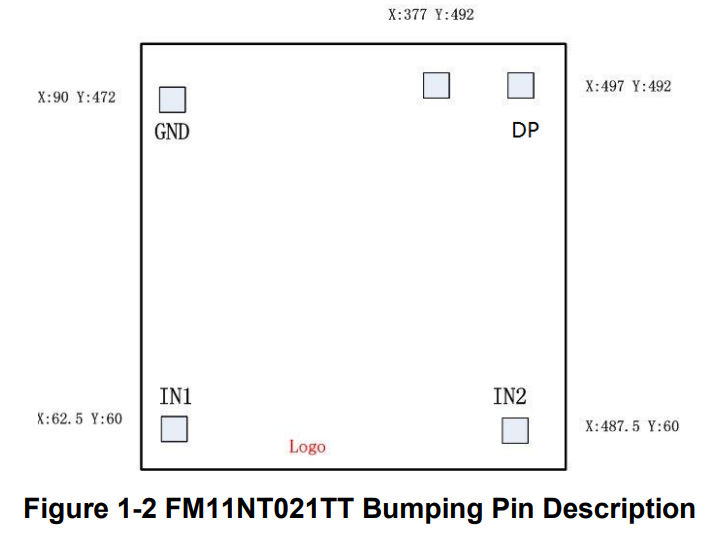

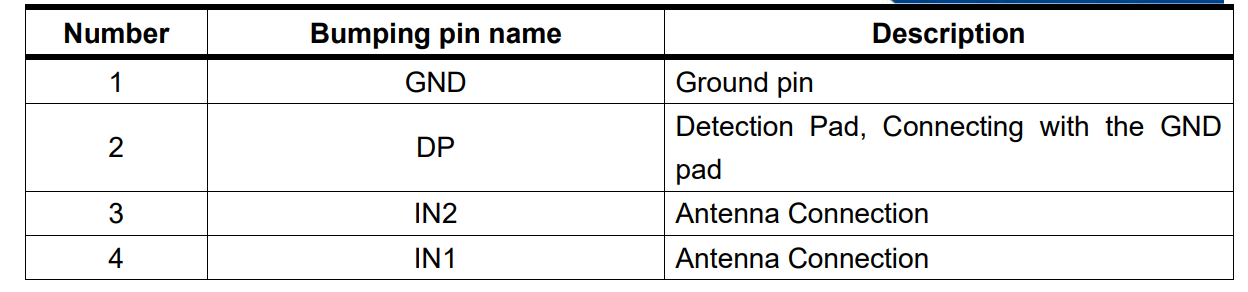

1.4 Bumping Pin Description
