FM11RF08S (short for RF08S) is a logic security IC which based on ISO/IEC 14443A for the proximity contactless applications. It has excellent compatibility with all kinds of readers, enhanced RF performance and higher reliability of EEPROM. Comparing with the old version chip RF08, RF08S's security and anti-crack ability have been enhanced by fixing the weak points in the realization of the algorithm without losing of the functional compatibility. The communication distance has also been enhanced keeping the merit of compatibility with all kinds of readers.
1.2 Features
1.2.1 RF Interface
ISO/IEC 14443-A
Contactless transmission of data and supply energy (no battery needed)
Operating distance: up to 10cm (depending on various parameters as e.g. field strength and antenna geometry)
Operating frequency: 13.56 MHz
Fast communication baud rate: 106Kbit/s
Operating distance: up to 100mm (depending on antenna geometry)
Half duplex communication protocol using handshake
Encryption algorithm compatible with M1 standard
Typical transaction time: ＜100ms 1.2.2
EEPROM

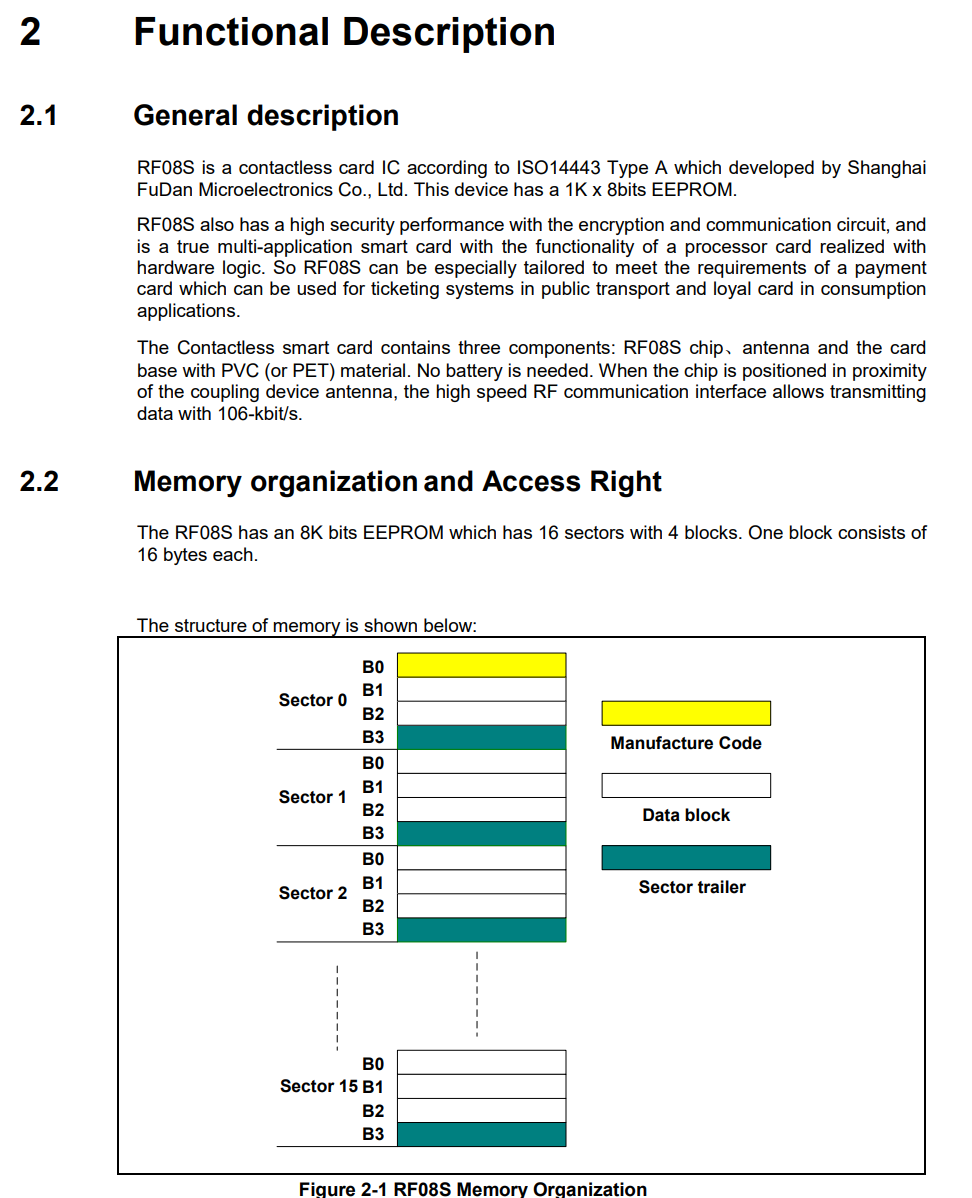

1024x8 bits EEPROM memory, Organized in security separated 16 sectors supporting multi-application use
10 years data retention
Write endurance of 200,000 cycles
1.2.3 Security
UID is unchangeable.
Mutual three pass authentication
High security level data communication
Each sector has two keys separately
User can defines assess conditions for each memory block flexibly
Security and anti-crack ability have been enhanced comparing with the old version chip

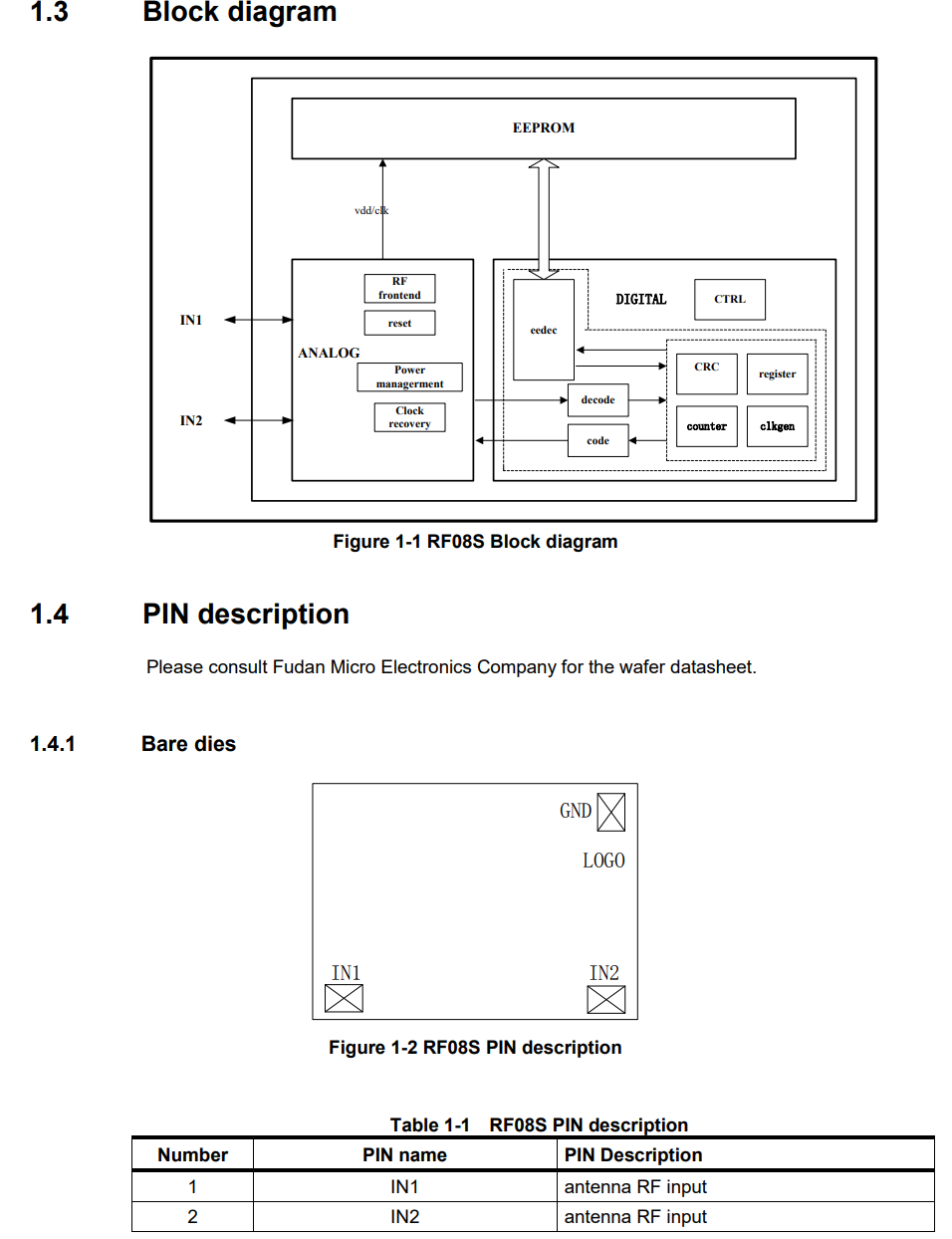

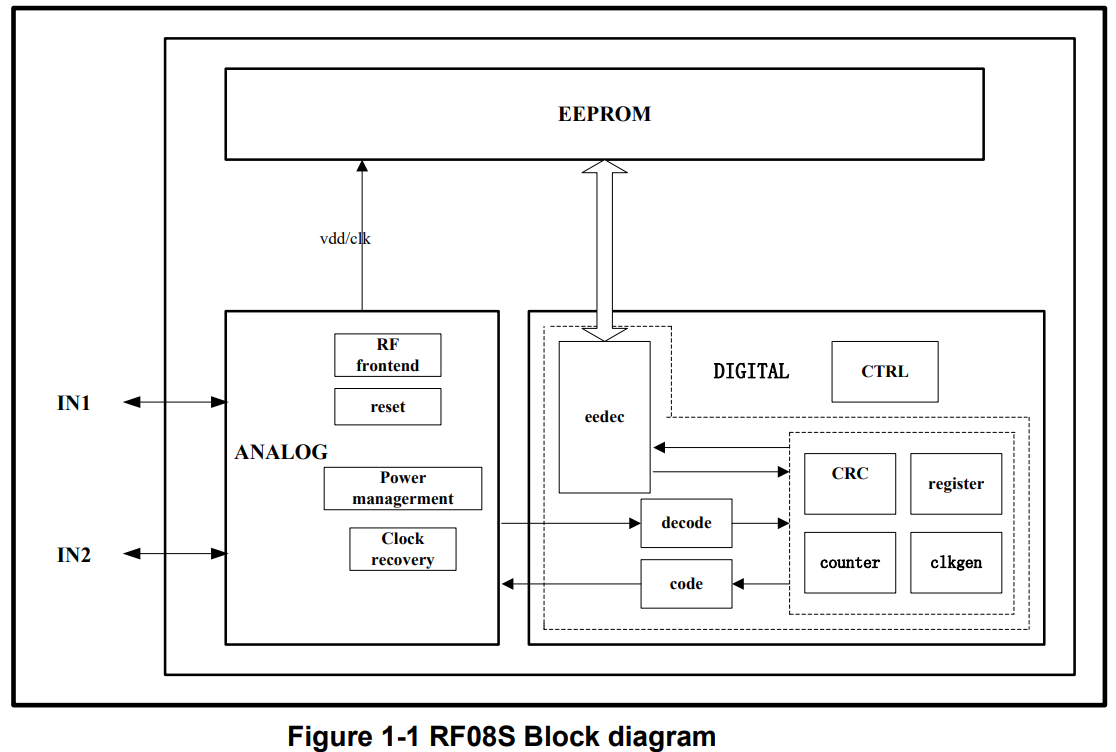

1.3 Block diagram
