F8013 is NFC Forum Type 2 Tag compliant IC according to ISO14443 Type A development by Shanghai Feiju Microelectronics Co., Ltd.
The FJ8013 chip consists of the 168 bytes of the total memory organized in 42 user memory EEPROM. From that amount, 144 bytes (36 pages) are available for the user defined data.
1. Features
RF interface
Contactless transmission of data and supply (no battery needed)
Operating frequency: 13.56MHz
Fast communication baud rate: 106Kbit/s
Contactless transmission of data and supply (no battery needed)
Operating distance: up to 100mm (depending on antenna geometry)
Half duplex communication protocol using handshake
Typical transaction time: ＜100ms
High data integrity: 16-bit CRC, parity, bit coding, bit counting
True anticollision
7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)
EEPROM
168 bytes of total memory, divided in 42 pages (4 bytes each)
144 bytes of user r/w memory area, divided in 36 pages (4 bytes each)
Field programmable read-only locking function per page for first 64 bytes
Field programmable read-only locking function per block
32-bit user definable One-Time Programmable (OTP) area
16-bit counter
High security
Anti-cloning support by unique 7-byte serial number for each device
32-bit user programmable OTP area
Field programmable read-only locking function per page for first 512 bits
Read-only locking per block for rest of memory
High Reliability
Endurance: 100,000cycle
Data Retention: 10 Years
Field detection
F8013 features an additional RF field detection functionality. The corresponding output signal can be used as interrupt source to e.g. wake up an embedded microcontroller or trigger further actions. Typical applications are Bluetooth and Wi-Fi pairing.
Cascaded UID
The anticollision function is based on an IC individual serial number called Unique IDentifier. The UID of the FJ8013 is 7 bytes long and supports cascade level 2 according to ISO/IEC 14443-3.
Anticollision
An intelligent anticollision function according to ISO/IEC 14443 allows to operate more than one card in the field simultaneously. The anticollision algorithm selects each card individually and ensures that the execution of a transaction with a selected card is performed correctly without data corruption resulting from other cards in the field.
2. Product Overview
2.1 Introduction
F8013 is NFC Forum Type 2 Tag compliant IC according to ISO14443 Type A development by Shanghai Feiju Microelectronics Co., Ltd. The FJ8013 chip consists of the 168 bytes of the total memory organized in 42 user memory EEPROM. From that amount, 144 bytes (36 pages) are available for the user defined data.
Along with the memory, FJ8013 contains the RF-Interface and the Digital Control Unit. Energy and data are transferred via an antenna, which consists of a coil with a few turns directly connected to the RF1 and RF2 of the FJ8013. No further external components are necessary.

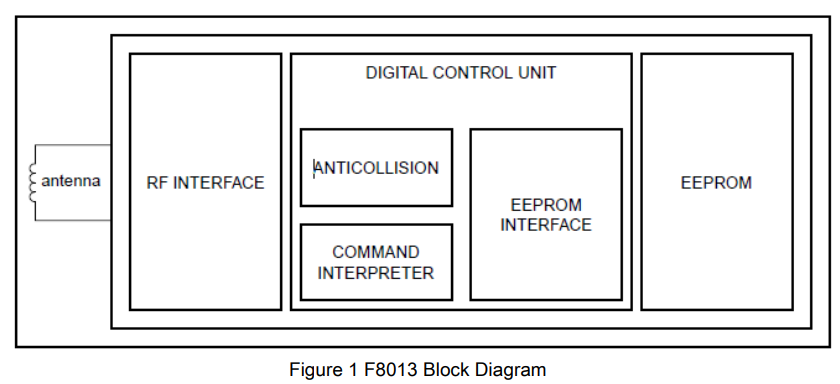

2.2 Block Diagram

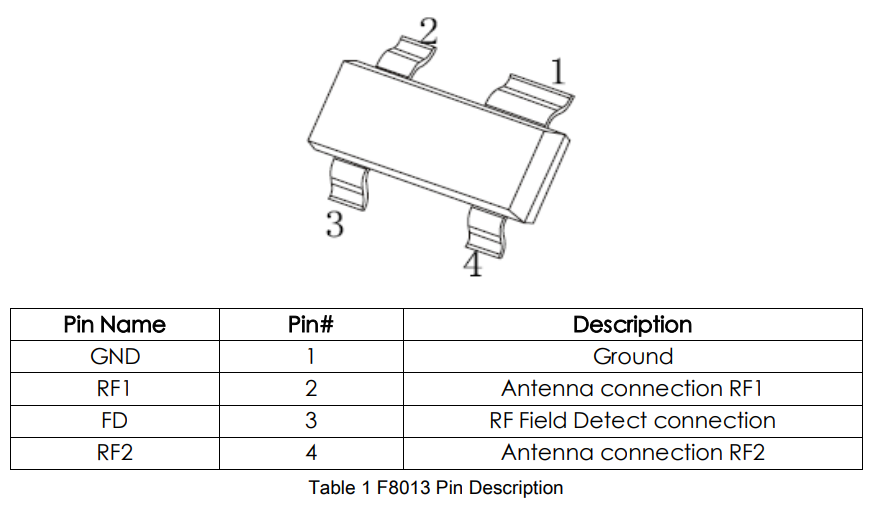

2.3 Pin Description
