The F8002 is a dedicated chip for intelligent label applications like supply chain management as well as baggage and parcel identification in airline business and mail services. This IC development by Shanghai Feiju Microelectronics Co., Ltd is one of smart label ICs based on the ISO standard ISO/IEC 15693.
The F8002 chip system offers the possibility of operating labels simultaneously in the field of the reader antenna (Anticollision). It is designed for long range applications.
1. Features
RF interface
Contactless transmission of data and supply (no battery needed)
Operating frequency: 13.56MHz
Fast communication baud rate: 53Kbit/s
Contactless transmission of data and supply (no battery needed)
Operating distance: up to 150cm (depending on antenna geometry)
Half duplex communication protocol using handshake
High data integrity: 16-bit CRC, parity, bit coding, bit counting
True anticollision
8 bytes serial number
Electronic Article Surveillance (EAS)
Application Family Identifier (AFI) supported
Data Storage Format Identifier (DSFID)
Additional fast anticollision read
EEPROM
256 bytes of user r/w memory, divided in 64 pages (4 bytes each)
Field programmable read-only locking function per page for all 64 pages DSFID,AFI Lock function
High Reliability
Endurance: 100,000cycle
Data Retention: 10 Years
Anticollision
An intelligent anticollision function according to ISO/IEC15693 allows to operate more than one card in the field simultaneously. The anticollision algorithm selects each card individually and ensures that the execution of a transaction with a selected card is performed correctly without data corruption resulting from other cards in the field.
2. Product Overview
2.1 Introduction
The F8002 is a dedicated chip for intelligent label applications like supply chain management as well as baggage and parcel identification in airline business and mail services. This IC development by Shanghai Feiju Microelectronics Co., Ltd is one of smart label ICs based on the ISO standard ISO/IEC 15693.
The F8002 chip system offers the possibility of operating labels simultaneously in the field of the reader antenna (Anticollision). It is designed for long range applications.
Whenever connected to a very simple and cheap type of antenna (as a result of the 13.56 MHz carrier frequency) made out of a few windings printed, winded, etched or punched coil the F8002 serial ICs can be operated without line of sight up to a distance of 1.5 m (gate width). No battery is needed. When the smart label is positioned in the field of an interrogator antenna, the high speed RF communication interface allows to transmit data with up to 53 kbit/s.
An intelligent anticollision function allows to operate more than one tag in the field simultaneously. The anticollision algorithm selects each tag individually and ensures that the execution of a transaction with a selected tag is performed correctly without data corruption resulting from other tags in the field.
Unique Identifiers, which can not be altered, guarantee the uniqueness of each label.

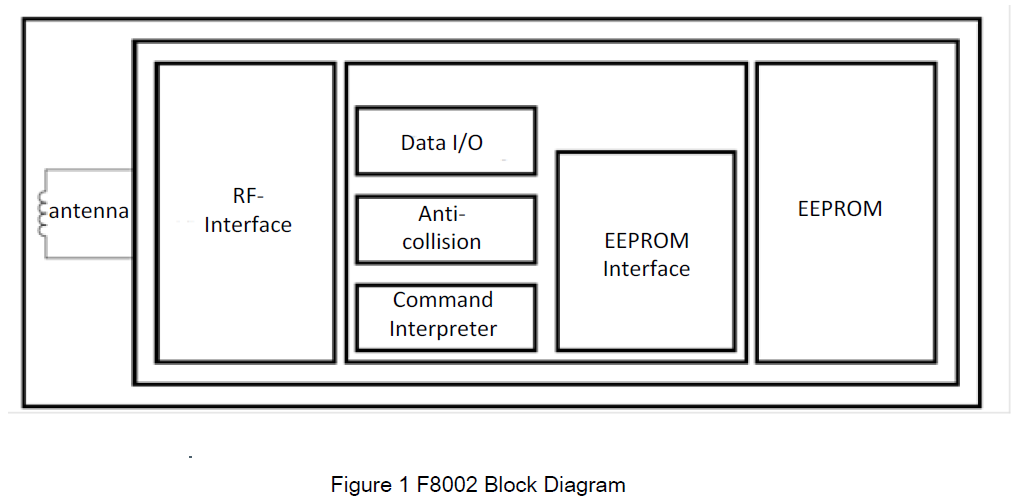

2.2 Block Diagram

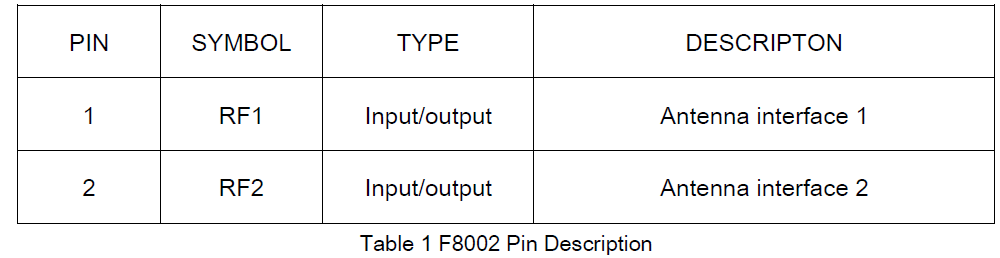

2.3 Pin Description
