F8001 is the contactless card IC according to ISO14443 Type A development by Shanghai Feiju Microelectronics Co., Ltd.
This device has 1K x 8bits EEPROM organization.
The maximum communication range between the reader antenna and contactless card is approximately 10 cm.
1. Features
RF interface
Compliant with ISO/IEC 14443-A
Contactless transmission of data and supply (no battery needed)
Operating frequency: 13.56MHz
Fast communication baud rate: 106Kbit/s
Contactless transmission of data and supply (no battery needed)
Operating distance: up to 100mm (depending on antenna geometry)
Half duplex communication protocol using handshake
Typical transaction time: ＜100ms
EEPROM
1024x8bit EEPROM memory
Organized in security separated 16 sectors supporting multi-application use.
User flexible defines assess conditions for each memory block.
High security
Mutual three pass authentication
High security level data communication
Each sector has its own two secret files for systems using key hierarchies.
High Reliability
Endurance: 100,000cycle
Data Retention: 10 Years
2. Product Overview
2.1 Introduction
F8001 is the contactless card IC according to ISO14443 Type A development by Shanghai Feiju Microelectronics Co., Ltd. This device has 1K x 8bits EEPROM organization. The maximum communication range between the reader antenna and contactless card is approximately 10 cm. F8001 also has a very high security performance with the encryption and communication circuit, and is a true multi-application smart card with the functionality of a processor card realized with hardware logic. So F8001can be especially tailored to meet the requirements of a payment card which can be used for ticketing systems in public transport and comparable applications.

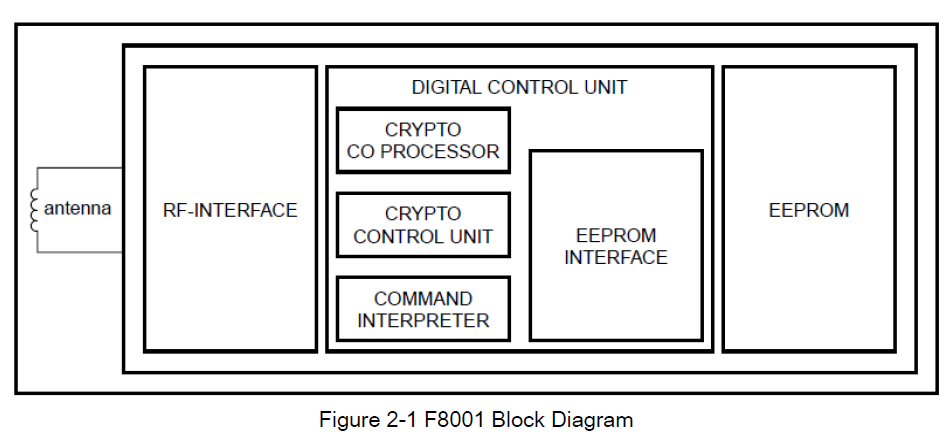

2.2 Block Diagram

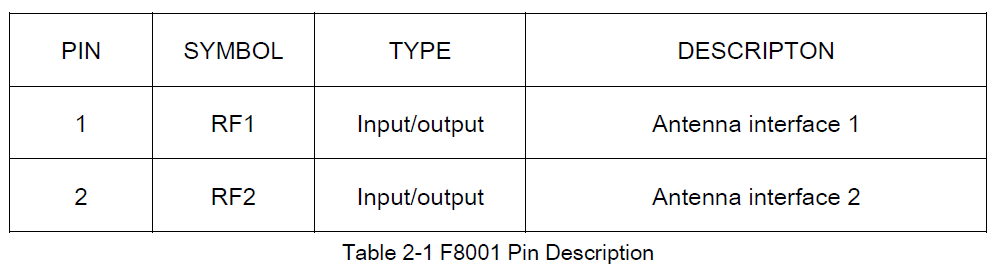

2.3 Pin Description
