FM13HS01 is a smart label IC which based on ISO/IEC 15693 and ISO/IEC 18000-3 for the vicinity applications. It has excellent compatibility with all kinds of readers, enhanced RF performance and higher reliability of EEPROM. There is an algorithm embedded in the chip which can be used to verify the tag by the reader. This can be used in some counterfeiting applications.
1.2 Features
1.2.1 RF Interface
ISO/IEC 15693
Contactless transmission of data and supply energy (no battery needed)
Operating distance: up to 1.5 m (depending on various parameters such as field strength and antenna geometry)
Operating frequency: 13.56 MHz
Fast data transfer: up to 53 kbit/s
High data integrity: 16-bit CRC, framing
True anti-collision
Password protected Electronic Article Surveillance (EAS)
Password protected Application Family Identifier (AFI)
Data Storage Format Identifier (DSFID)
Password protected Kill functionality
Additional fast anti-collision read functionality
Write 2 Block is supported
Persistent quiet mode to enable faster inventory speed
1.2.2 EEPROM
1k bits of total memory, divided in 32 blocks (4 bytes each)
32 Blocks configurable data areas that can be divided into secure and common data areas as needed
the secure data area is protected by password, you need to check the password before you can access it
50 years data retention
Write endurance of 100,000 cycles
1.2.3 Security
Unique identifier for each device, UID is unchangeable.
Lock mechanism for each user memory block (write protection)
Lock mechanism for DSFID, AFI, EAS
Password (32-bit) protected EAS and AFI functionality
Password(32-bit) protected Kill functionality
Password(32-bit) protected memory access protection
Authentication of the tag by the reader based on the algorithm
The KEY and the password cannot be read directly
Privacy mode is supported
Customized communication protocol function
28bits counter function increased when the chip powers on and addressed automatically
Tamper detection
1.2.4 Other characteristics
Open-drain output which can be used to light a LED and make it flicker with the NFC field energy or give an IRQ to the MCU

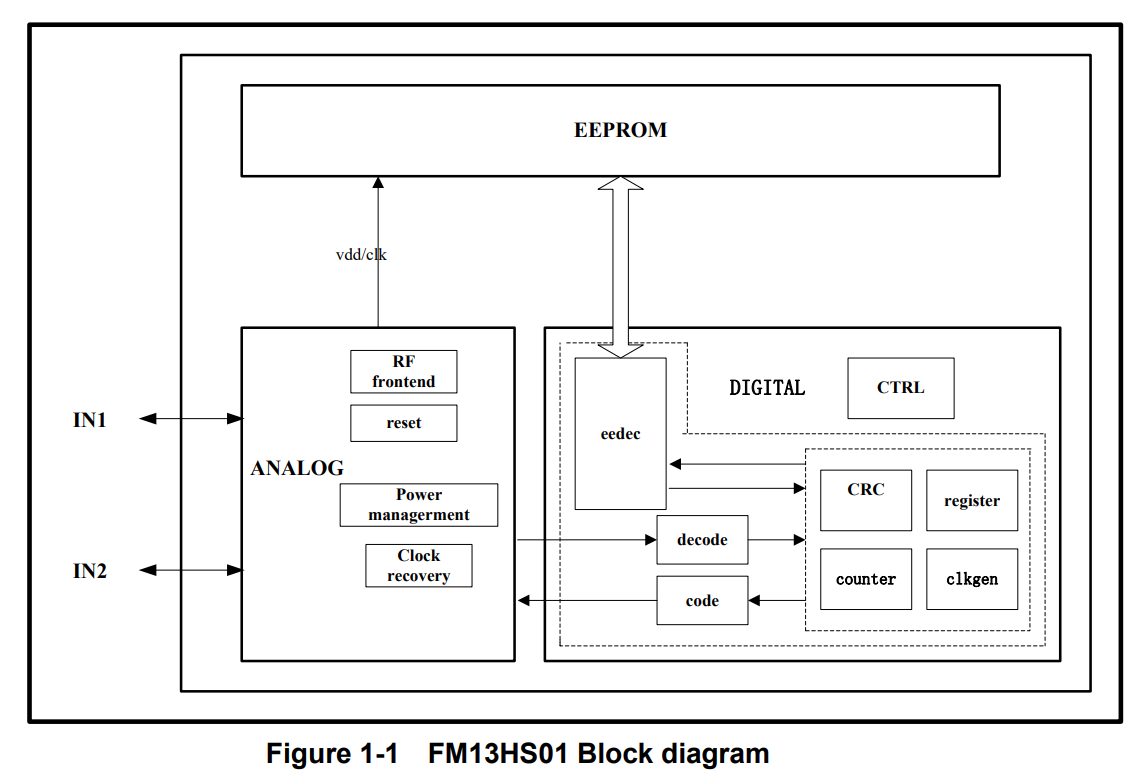

1.3 Block diagram
