FM13HF01 is a smart label IC which belongs to the ITAG family based on ISO/IEC 15693 and ISO/IEC 18000-3 for the vicinity applications. It has excellent compatibility with all kinds of readers, enhanced RF performance and higher reliability of EEPROM.
1.2 Features
1.2.1 RF Interface
ISO/IEC 15693
Contactless transmission of data and supply energy (no battery needed)
Operating distance: up to 1.5 m (depending on various parameters as e.g. field strength and antenna geometry)
Operating frequency: 13.56 MHz
Fast data transfer: up to 53 kbit/s
High data integrity: 16-bit CRC, framing
True anti-collision
Password protected Electronic Article Surveillance (EAS)
Password protected Application Family Identifier (AFI)
Data Storage Format Identifier (DSFID)
Password protected Kill functionality
Additional fast anti-collision read functionality
Write 2 Block is supported 1.2.2
EEPROM
1k bits of total memory, divided in 32 blocks (4 bytes each)
32 Blocks configurable data areas that can be divided into secure and common data areas as needed
the secure data area is protected by password, you need to check the password before you can access it
50 years data retention
Write endurance of 100,000 cycles
1.2.3 Security
Unique identifier for each device, UID is unchangeable.
Lock mechanism for each user memory block (write protection)
Lock mechanism for DSFID, AFI, EAS
Password (32-bit) protected EAS and AFI functionality
Password(32-bit) protected Kill functionality
Password(32-bit) protected memory access protection
1.2.4 Other characteristics
Support Open-drain output

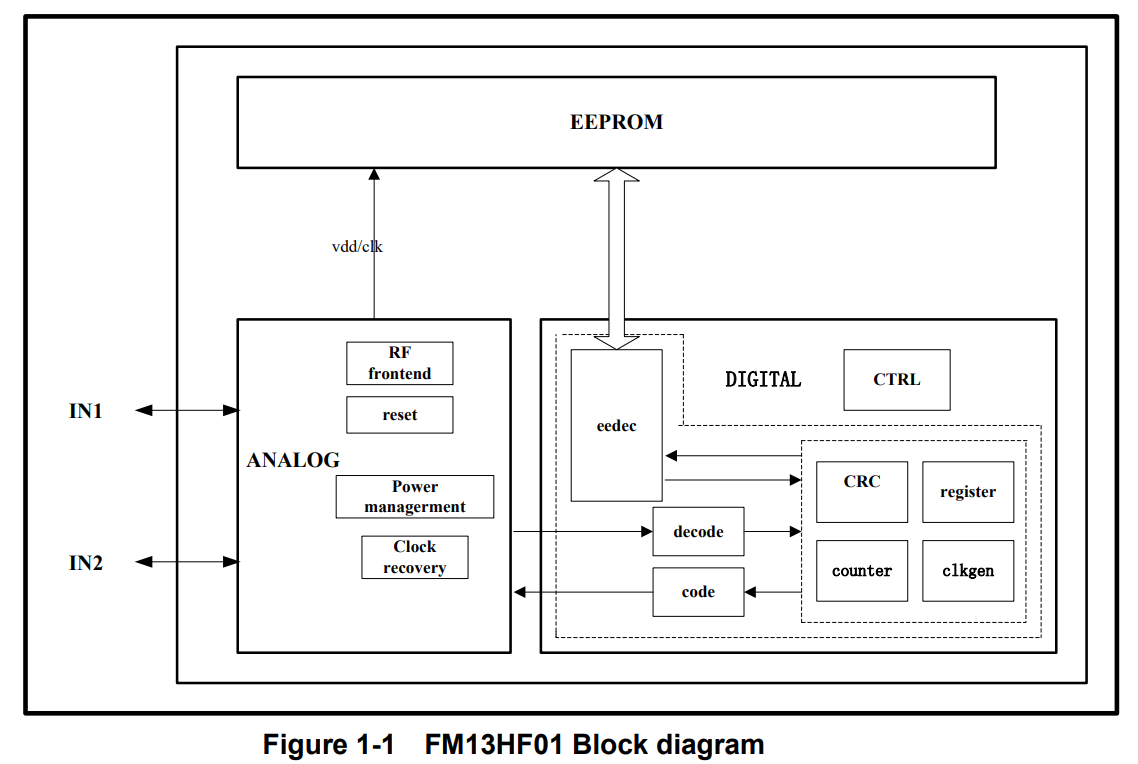

1.3 Block diagram
