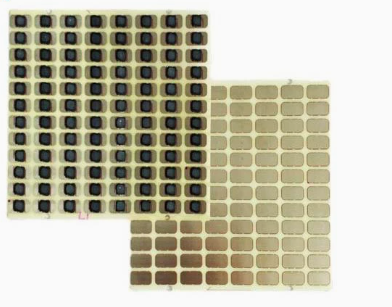

The FM11RF005U is the contactless smart card IC according to ISO14443 Type-A developed byShanghai FM Co., LTD. This device has 512 bits EEPROM organization. The maximum communicationrange between the reader antenna and contactless card is approximately 10cm. Data is exchanged half duplex at a 106-kbit/s rate.
Depending on the field programmable read-only locking and One Time Programmable (OTP)function, the FM11RF005U provides advanced security level and logical transaction function. As astyle of multi-application card, the FM11RF005U is wildly used in the low-cost field of city publictransport. variously charging payment card, data acquisition systems and comparable application.
The Contactless smart card contains three components: FM11RF005U chip antenna and the cardbase with PVC (or PET) material. No battery is needed. When the chip is positioned in proximity ofthe coupling device antenna, the high speed RF communication interface allows to transmit data with 106 Kbit/s
1.1 Features
Contactless Communications RF Interface
Contactless transmission of data andsupply (no battery needed)
Operating distance: up to 100mm(depending on antenna geometry)
> Operating frequency: 13.56MHz
Fast communication baud rate: 106Kbit/s
Half duplex communication protocol using handshake
Modulation and encoding comply with ISO/1EC 14443 Type-A protocol
Answer to request: comply with ISO/IEC14443 Type-A protocol
Typical transaction time: < 35ms
True anti-collision
EEPROM
512 bits EEPROM memory.
Organized in 16 blocks of 4 bytes each
32 bit User definable One TimeProgrammable (OTP) area
384 bit user r/w area (12 pages).
High Security
7 bytes serial number (cascade level2according to ISO/IEC 14443-3
Field programmable read-only locking function per page
High Reliability
Endurance: 100,000cycle
Data Retention: 10 Years

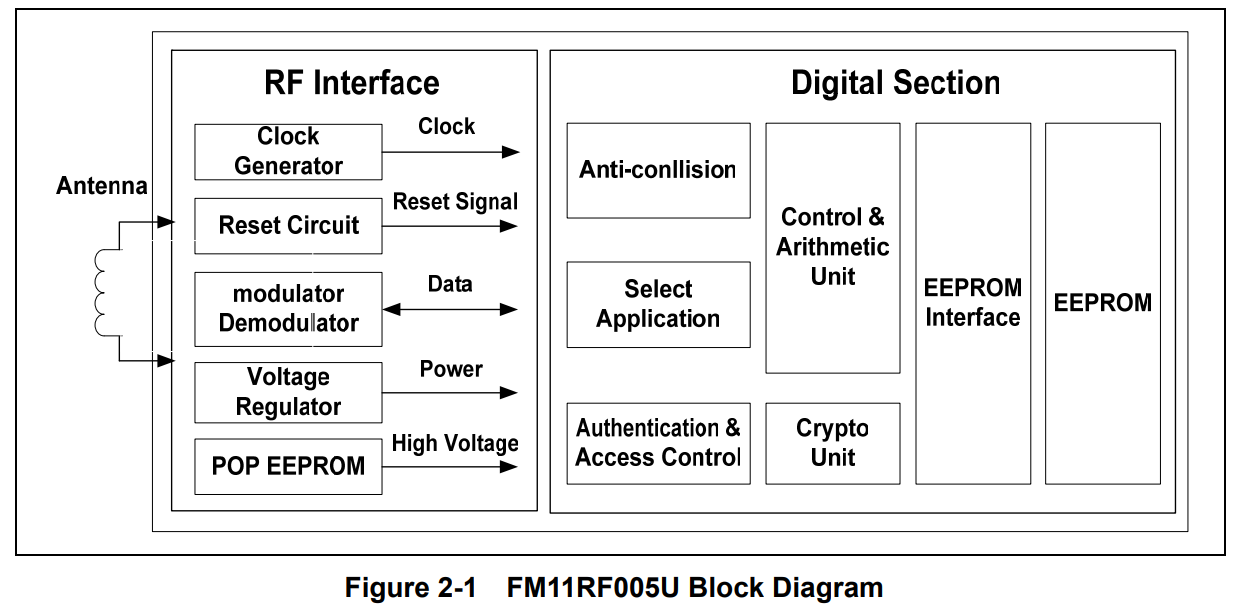

2.1 Block diagram
