Model : ZXS6820
Material ; PCB+Plastic Case
Frequency : 860-960Mhz
Chip : H3 ,IMPINJ etc
Size : 220*220*60mm , 1.5kg/pc
Certificate ;RoHS
MOQ :1pcs
Protocol ; ISO-18000-6C（EPC G2）、ISO-18000-6B
Model : Proximity integration
Reading Distane :3-5metres

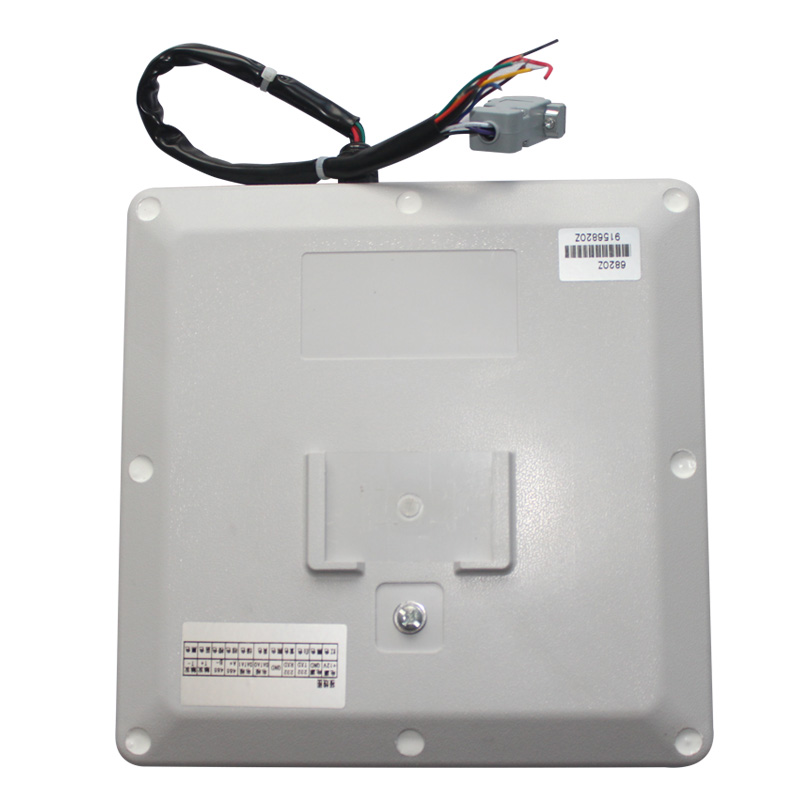

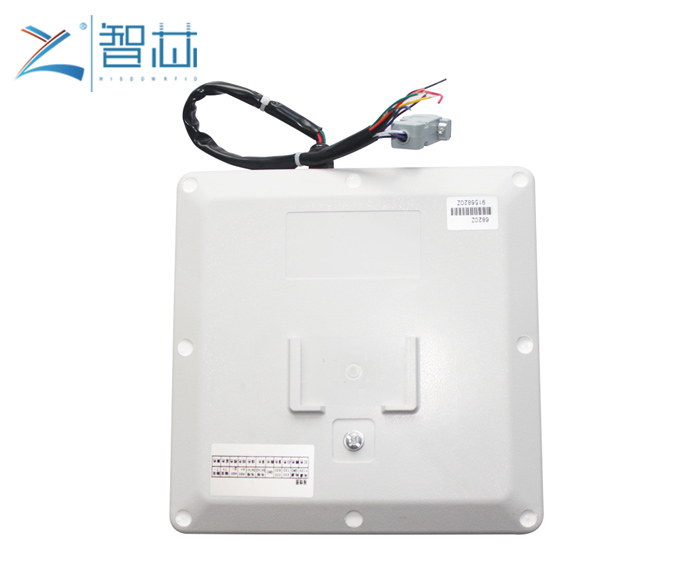

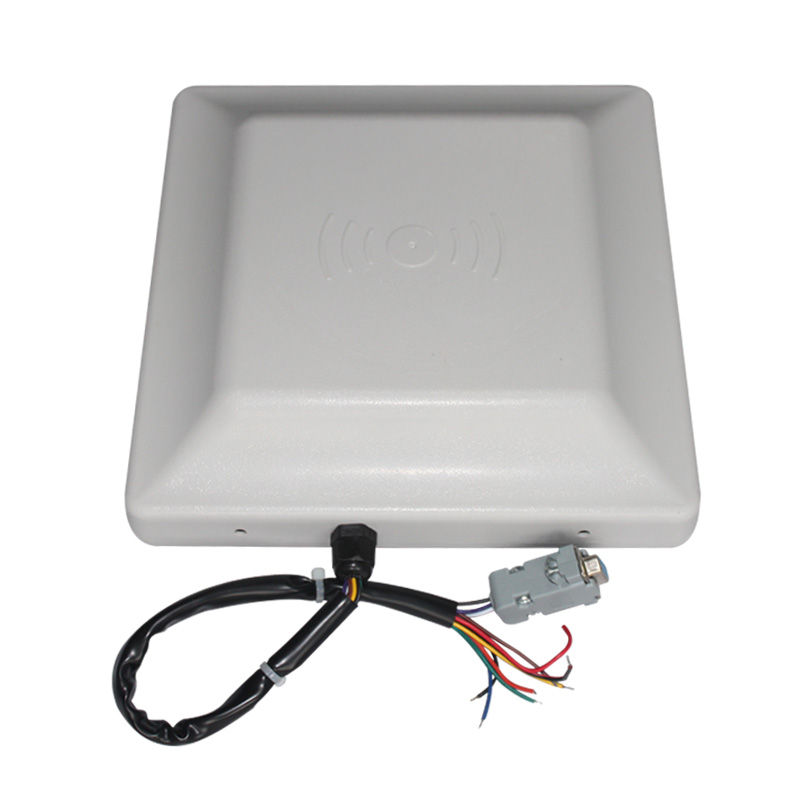

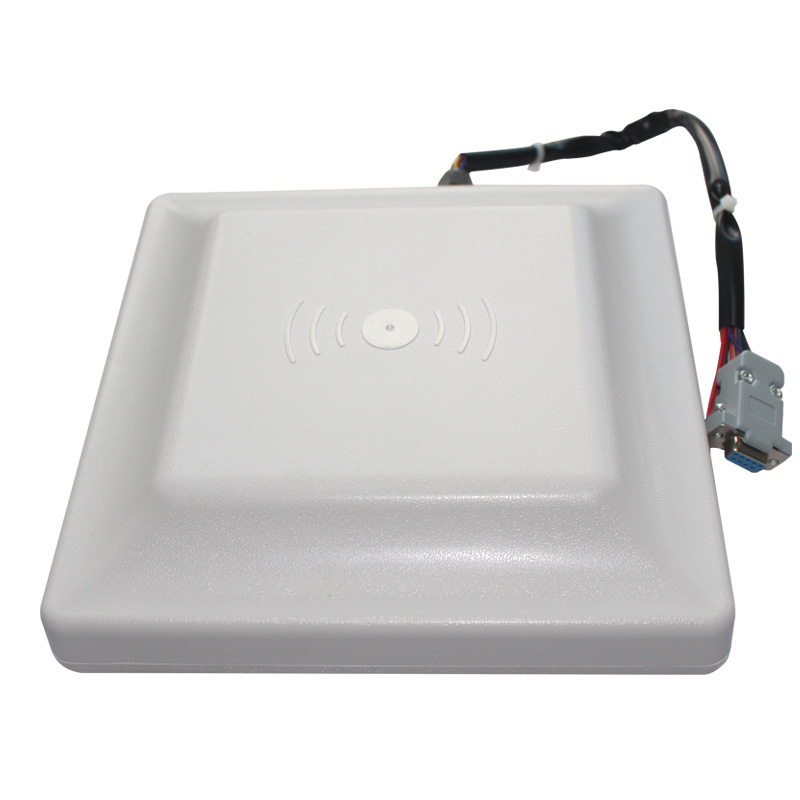

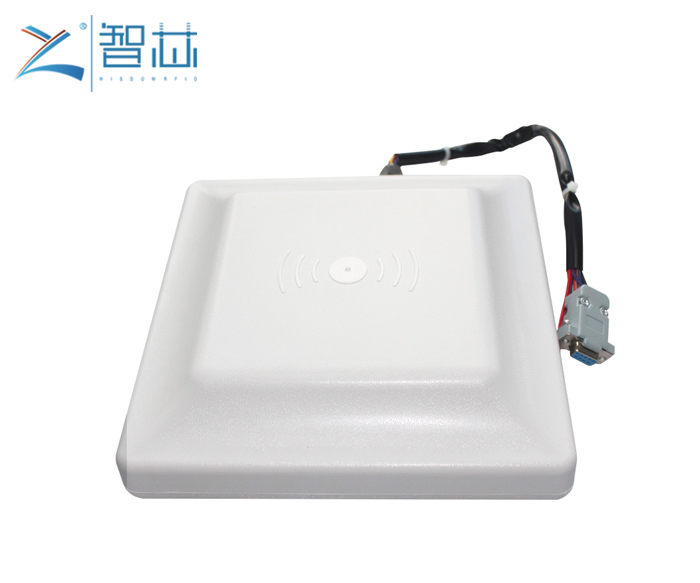

Statement: Pictures above only show the product , the intellectual property rights of the logo owned by their trademark companies.
Integrated, high performance 8dBi circular polarization antenna ensure long-range reading & writing and easy installation.Product featuresØ Protocol support: ISO 18000-6B or ISO 18000-6C(EPC Gen2).Ø Super anti-interference ability for its FHSS frequency working method.Ø Software with different Programming language allows easy upgrade.Ø Waterproof and sunshine defending, idea for outdoor applications.Ø All kinds of communication interfaces and customizing is available too.Technical parameters
| Model | Integrated UHF Table Reader for Warehouse Management |
| Frequency | 1Sm 902-928MHZ and can be customized with different area |
| Operation Mode | Fixed Frequency or FHSS or Software Programmable |
| RF Power Output Adjustable | Power Output Adjustable Range：0.1W --- 1W |
| Built- in Antenna Type | Built-in Circularly polarized antenna. |
| Communication Ports | 1）RS-2322）RS-4853）Weigand 26 bits \ 32bits4）RJ45， TCP/IP(can be customized) |
| Communication Rates | Up to 57,600bps and software programmable |
| Reading/Writing Capability | 1） Capability of Reading/Writing agreement of ISO18000-6B 、EPC Passive tags and software programmable.2） Able to decode ISO-18000B、EPC.3） Reading Rang(Max).: 5M Reading Rang(Reliable):3M |
| Programmable Application Platform | 1） Allows Programmable Interface with host applications;2） Currently Supports Visual Basic or VC applications. |
| Power Consumed | +5V DC， Average power of less than 2W |
| Dimension / Weight | 220mm×220mm×50mm/1.5KG |
| Operation Temp | Working Temp.：-20°~ +60 ° Storage Temp.：-40°~ +70° |
Wiring diagram
| PowerVCC | PowerGND | RS232TXD | RS232RXD | GND | WiegandDATA0 | WiegandDATA1 | RS485A+ | RS485B- | TriggerT+ | TriggerT- |
| Red | Black | White | Purple | Black | Yellow | Green | Brown | Orange | Blue | Black |

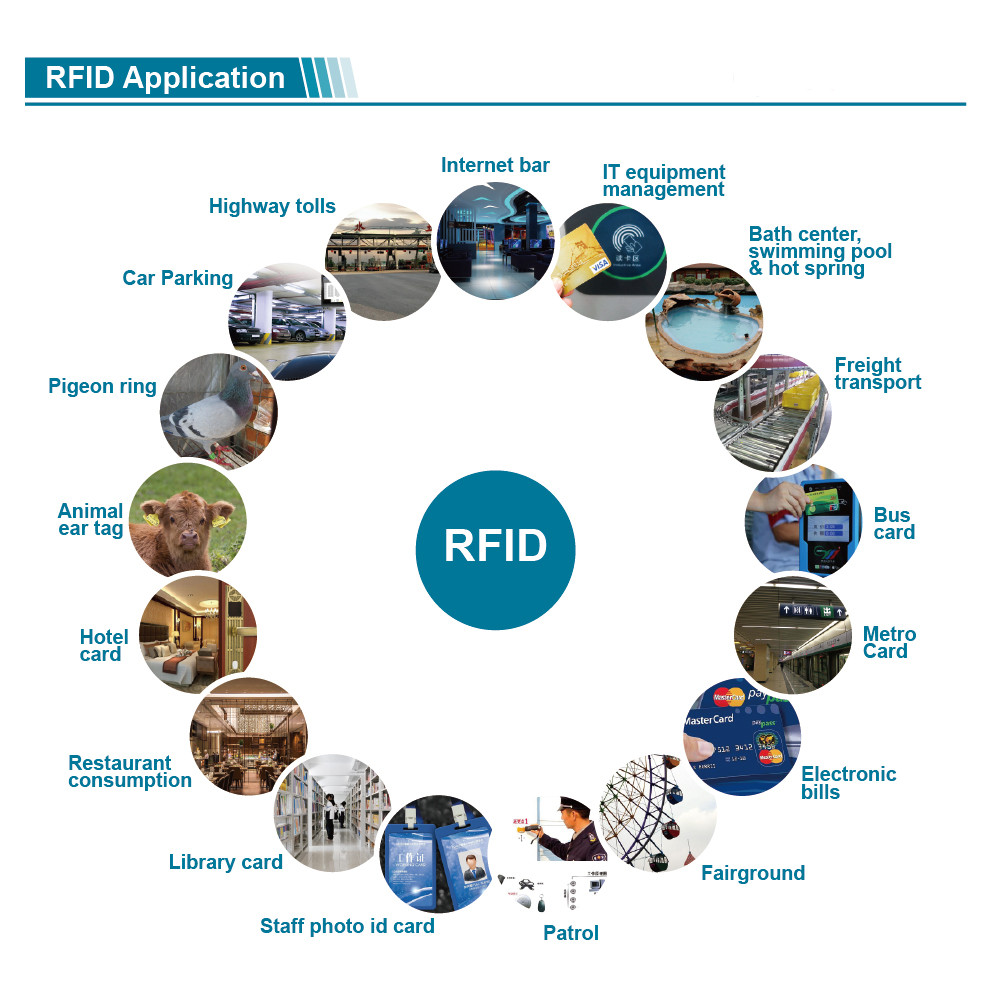

Application
●Intelligent traffic such as ETC;
●Customs border-crossing, parking lot, automatic weighting;
●Logistics such as container management, pallet management, asset management etc;
●Ticketing& access control ;
●Pharmaceuticals such as medical waste management ,etc.

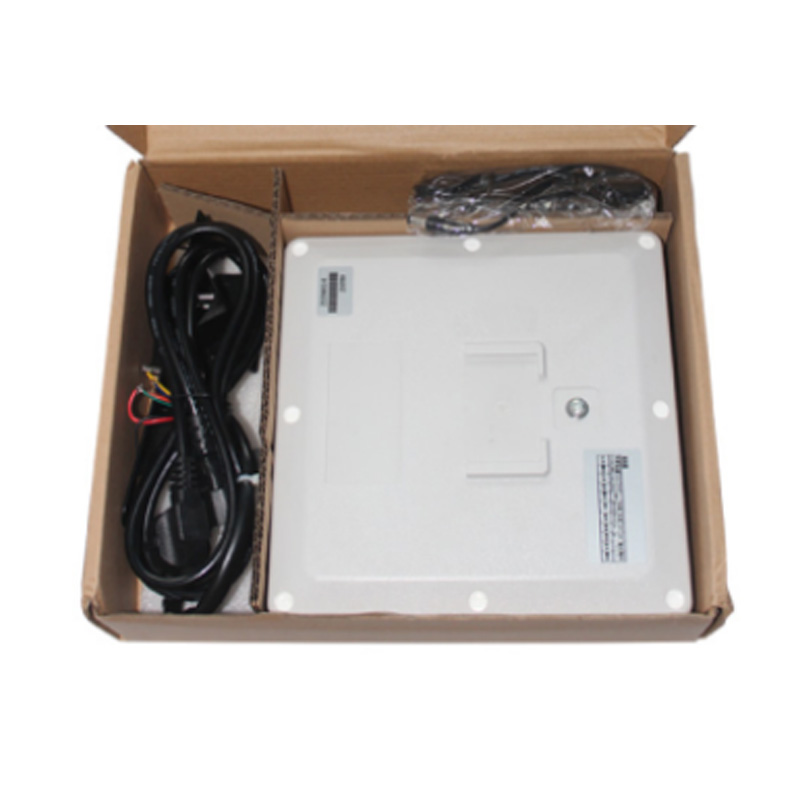

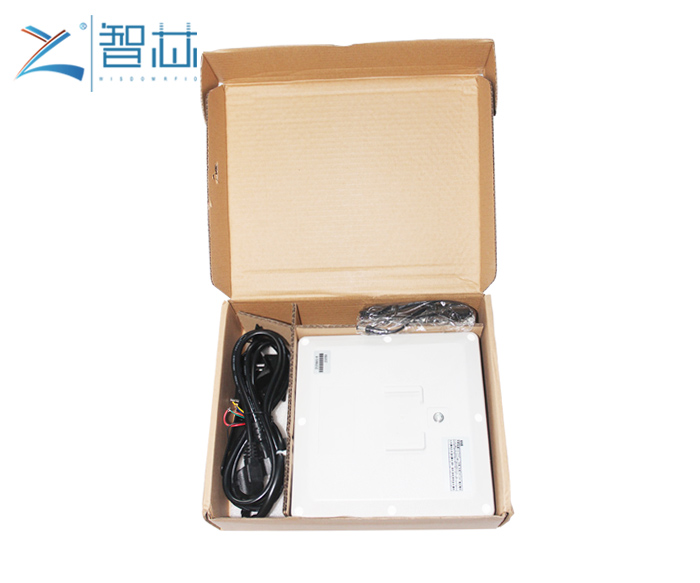

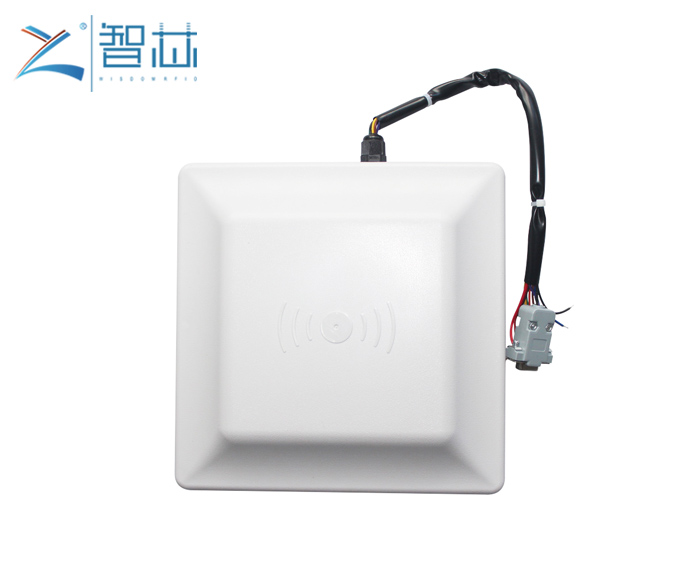

Pictures
