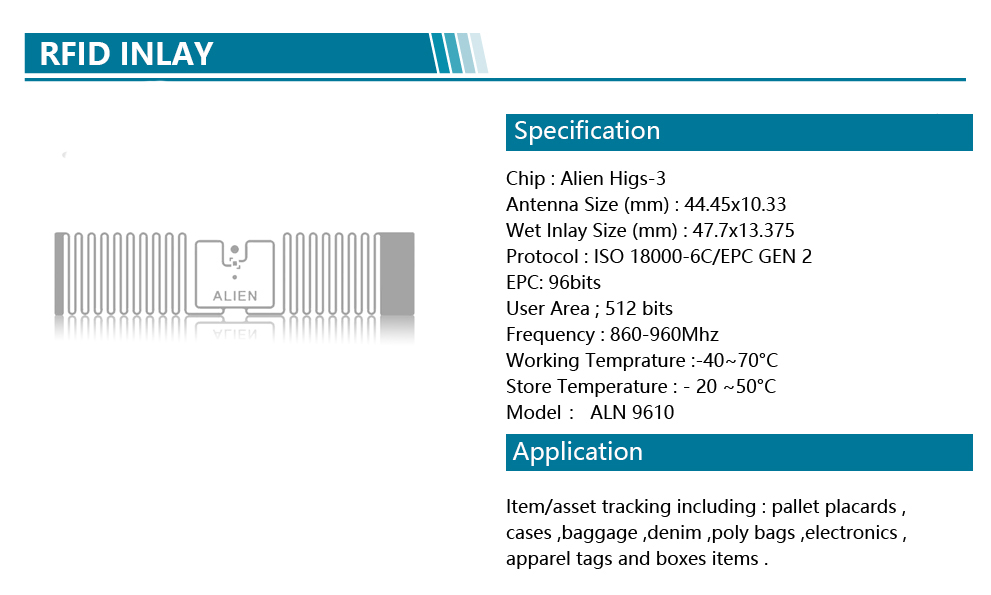

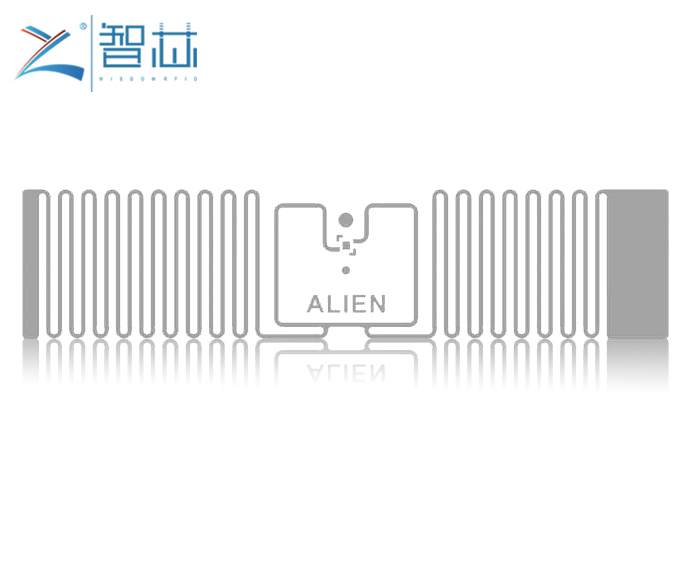

Model : ZXUHFIY0001
Material ; PET
Frequency : 860-960Mhz
Chip : Alien H3
Antenna Size ;44.45x10.33 mm
Wet Inlay Size :47.7x13.375mm
Certificate ;RoHS
MOQ :500pcs
Free samples testing is available
Statement: Pictures above only show the product , the intellectual property rights of the logo owned by their trademark companies.

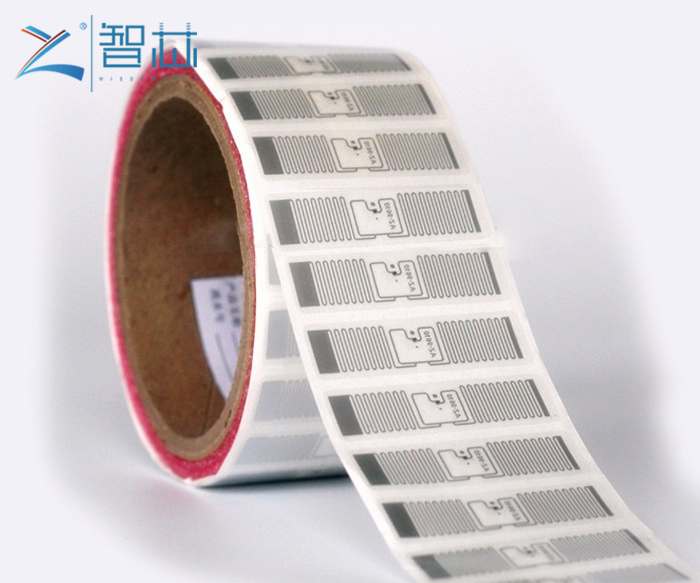

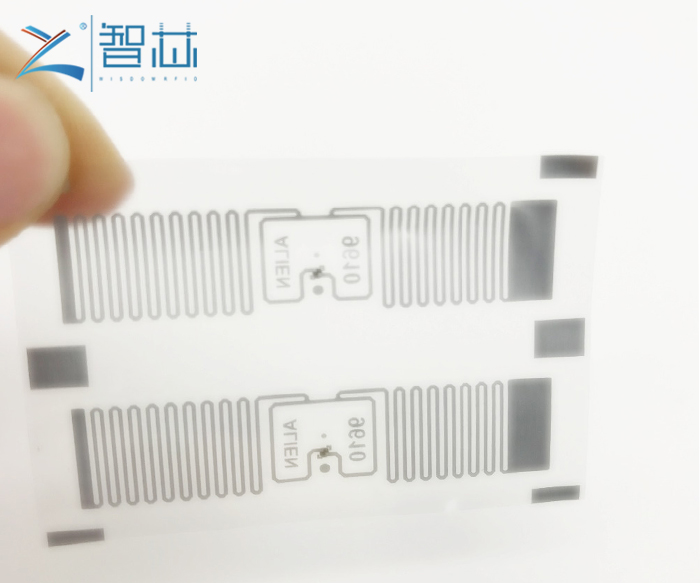

UHF RFID Inlays is composed of chip and antenna base on PET substrate ,it is also 860-960mhz and meets Gen 2 Cass 1 & 18000-6C .We can produce them as wet or dry inlay according to customer requirements .Normally it is aluminum etching antenna also can be conductive silver printing antenna .They are widely use for garment , documents management and library management .
| Product | China Factory 860-960mhz Alien H3 9610 Wet or Dry UHF Inlays |
| Material | PET |
| Size | Antenna size ;44.45x10.33mm and Wet inlay size :47.4x13.375mm |
| Surface Finishing | Aluminum etching antenna |
| Printing | Without printing |

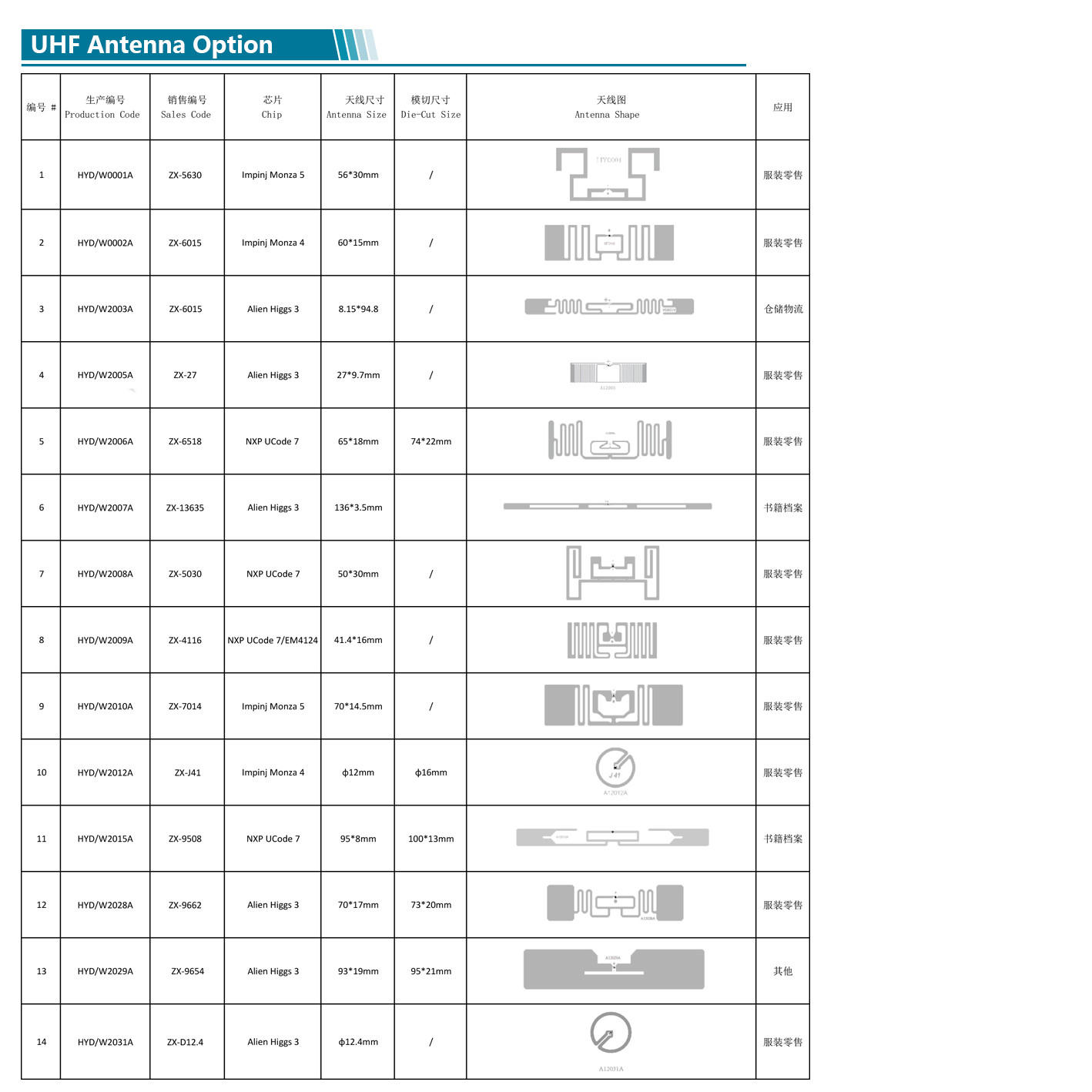

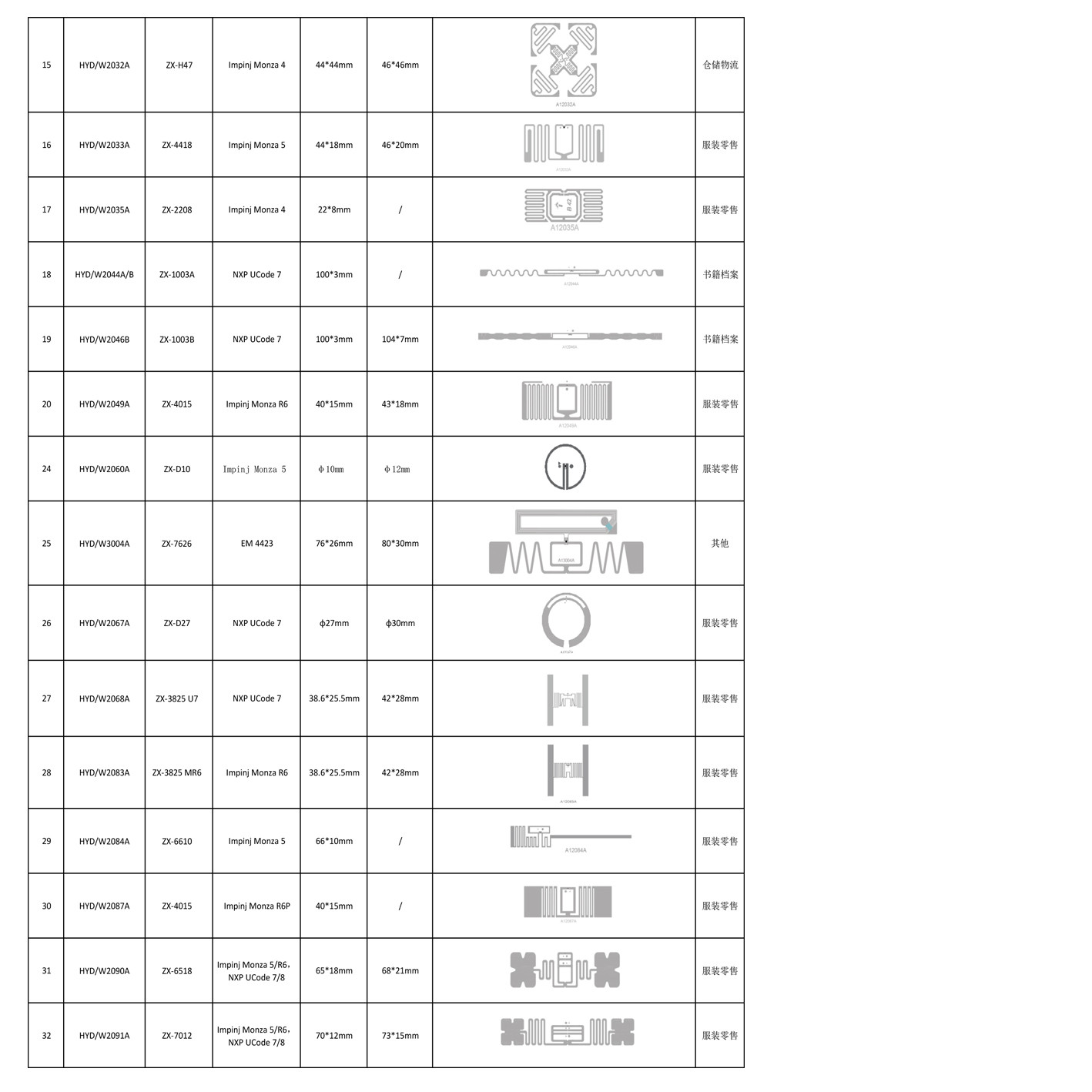

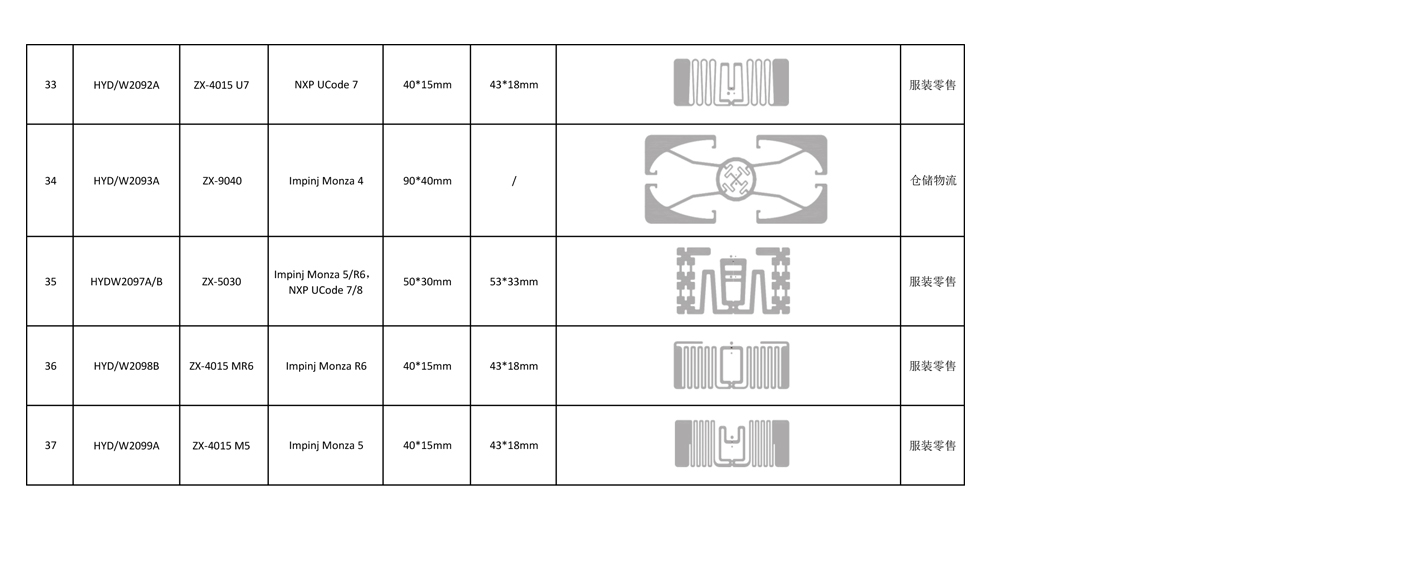

| Chips Option | Alien H3 , IMPINJ M4,M5.M6 .or NXP U Code serial .. |
| Memory | 512bits . |
| Reading distance | 3-5 meters (depend on antenna size and reader power ) |
| Personalization | Laminated with paper , pvc ,pet for labels or adhesive backing |

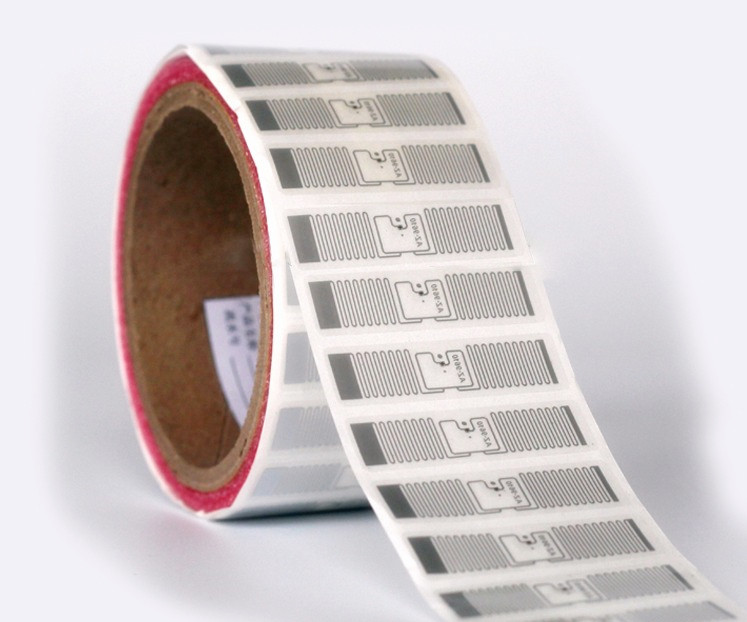

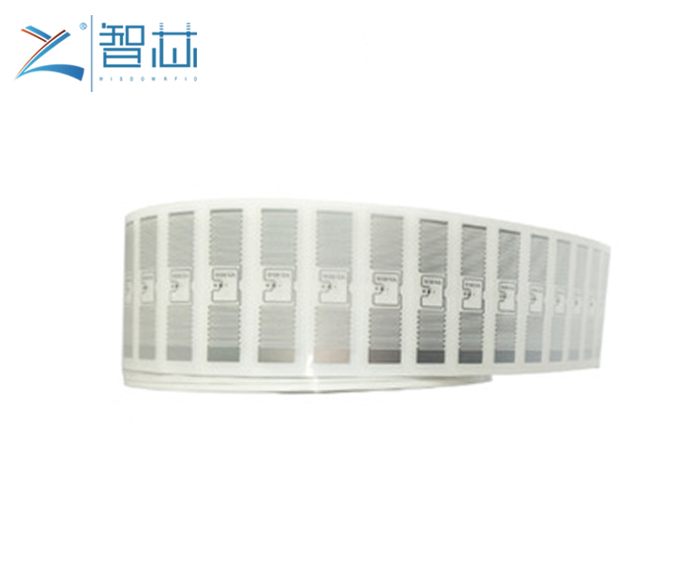

| Package | Rolling or piece by piece |
| Shipment | By Express, by air, by sea |

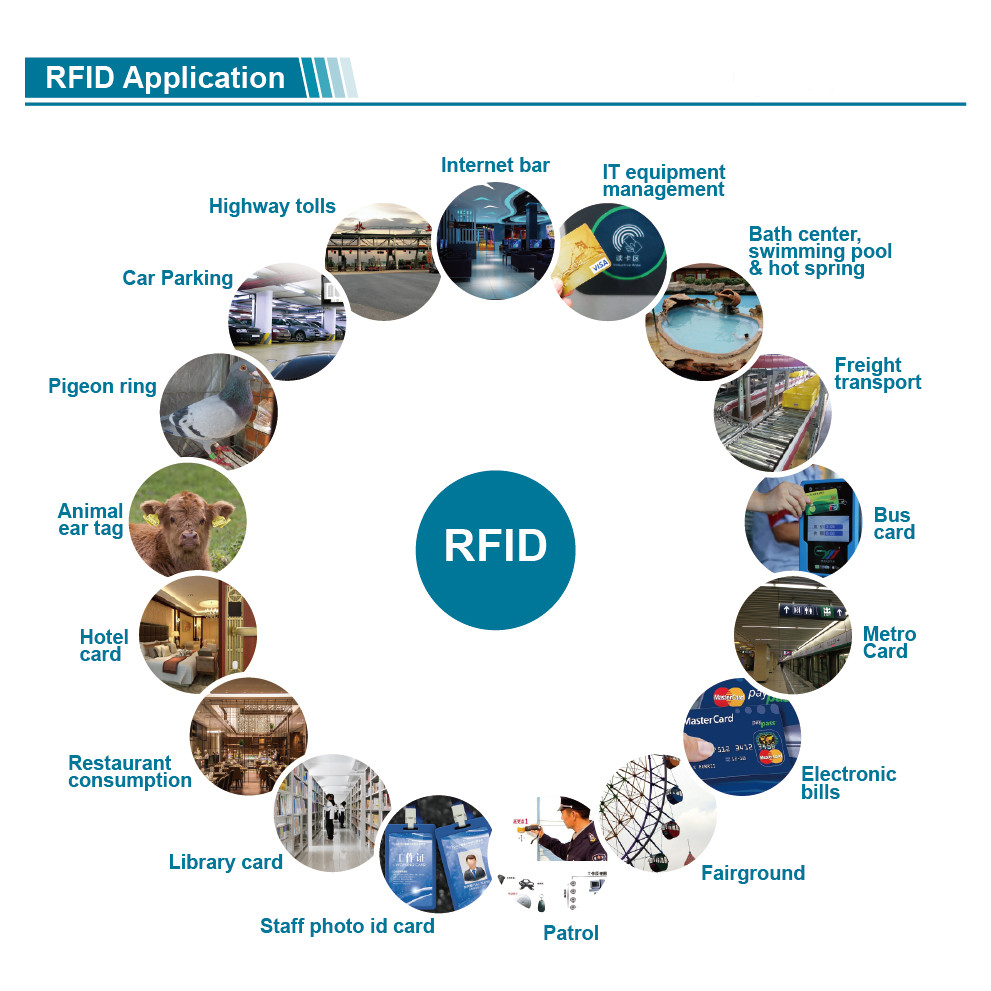

| Application | Garment management , library , logistic , medicine ,food and school etc. |
