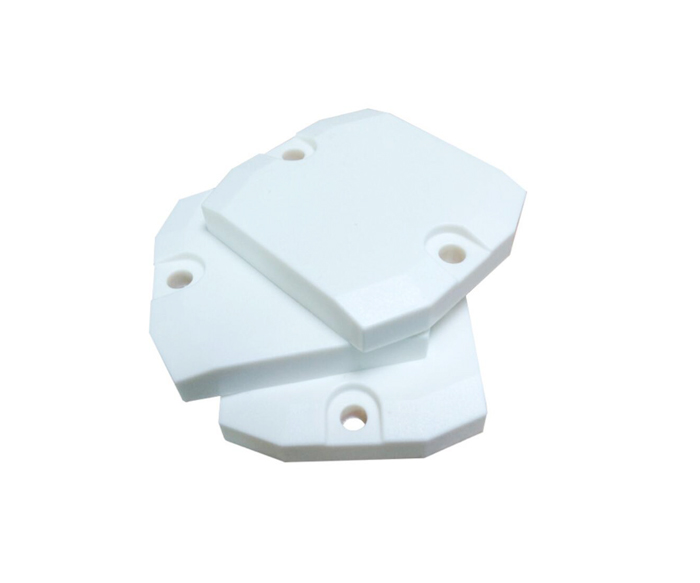

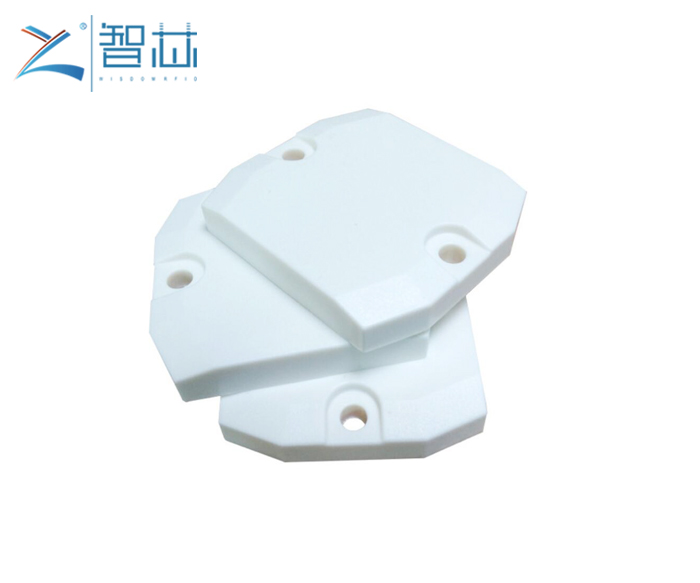

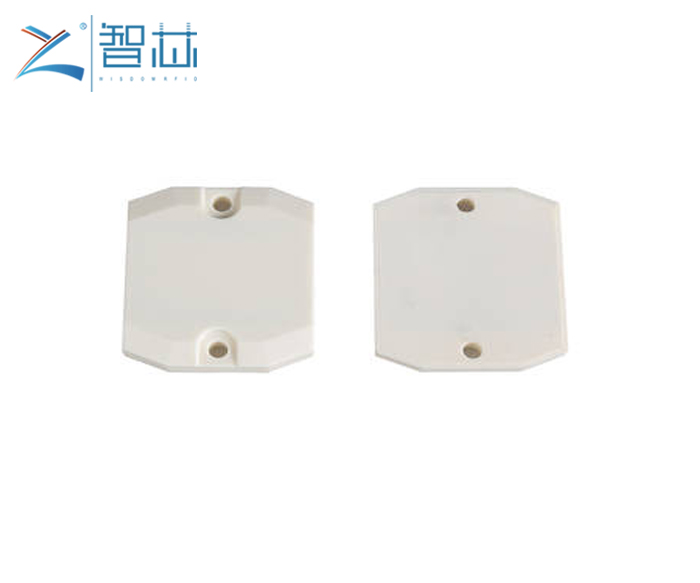

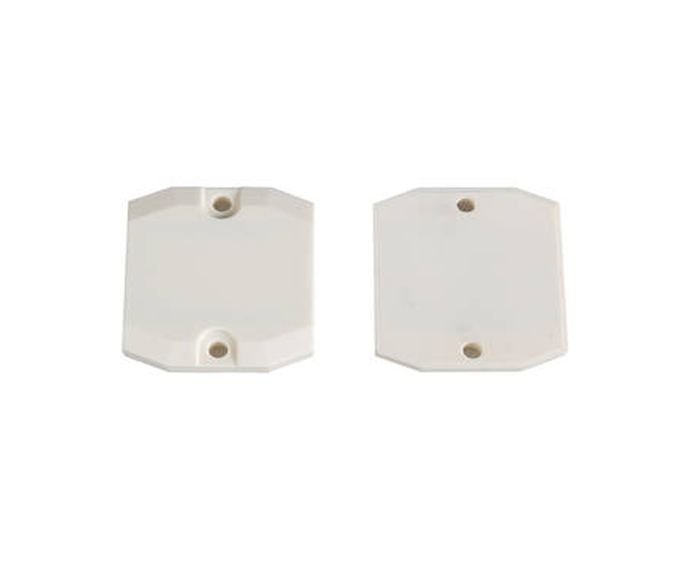

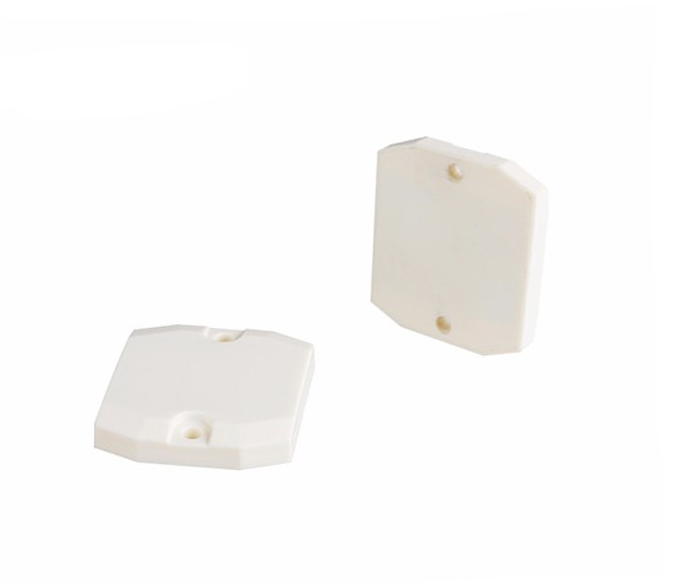

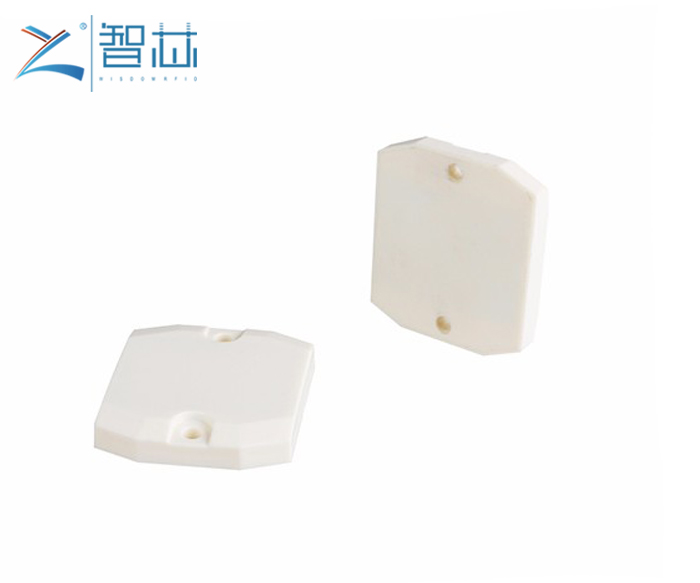

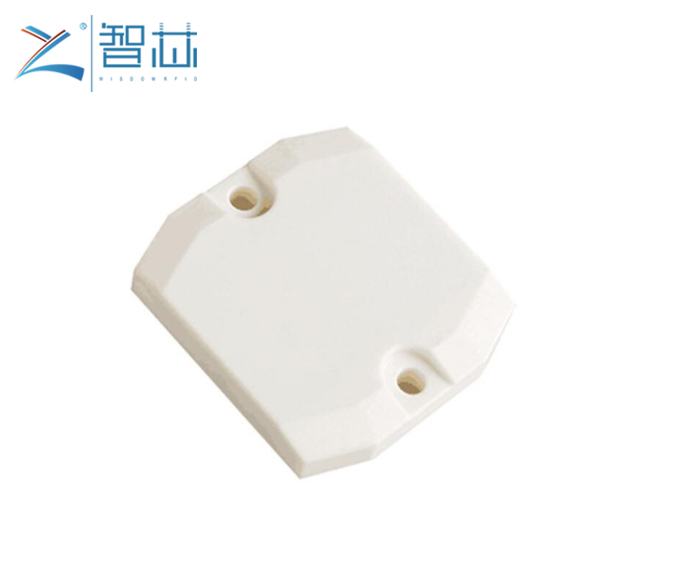

18000-6C UHF RFID Patrol Tag Passive On Metal Tag

.Model : ZXPAR0002

.Material ; ABS

Frequency : 125khz ,13.56mhz ,860-960mhz

.Chip : TK4100 ,EM4200 ,Hitag S256, Hitag-1 Hitag-2 ,T5577 ,NXP MIFARE

           Classic®1K ,NTAG®213,H3 ,IMPINJ M4 .etc .

Size : 56*50*9mm customized size is available

Certificate ;RoHS

MOQ :500pcs

Color : white and black (another color will above 5000pcs can customize)

Free samples testing is available


  • Product
  • Parameter

18000-6C UHF RFID Patrol Tag Metal Screw Mounted18000-6C UHF RFID Patrol Tag Passive On Metal Tag18000-6C UHF RFID Patrol Tag Passive On Metal Tag

18000-6C UHF RFID Patrol Tag Passive On Metal Tag

18000-6C UHF RFID Patrol Tag Passive On Metal Tag

18000-6C UHF RFID Patrol Tag Passive On Metal Tag18000-6C UHF RFID Patrol Tag Passive On Metal Tag18000-6C UHF RFID Patrol Tag Passive On Metal Tag18000-6C UHF RFID Patrol Tag Passive On Metal Tag18000-6C UHF RFID Patrol Tag Passive On Metal Tag18000-6C UHF RFID Patrol Tag Passive On Metal Tag

Statement: Pictures above only show the product, the intellectual property rights of the logo owned by their trademark companies.

RFID Patrol Guard ABS Tag Security Checkpoint Tag

18000-6C UHF RFID Patrol Tag Passive On Metal Tag is best for places and conditions that the other types of RFID tags will not be capable of withstanding.It comes with an ABS shell that can withstand moisture, harsh temperatures and other environmental conditions. The tag is designed for adhesion to metal and electronic surfaces. A ferrite layer is used to shield the antennae and enable the use of the tag on such surfaces. Zhixin RFID Tags Co.,Ltd offers high quality patrol or security checkpoint rfid tag and customized numbering or printing is available .You can produce 125khz , 13.56mhz and 860-960mhz for your options with different frequency applications and devices .


Product18000-6C UHF RFID Patrol Tag Passive On Metal Tag
MaterialABS

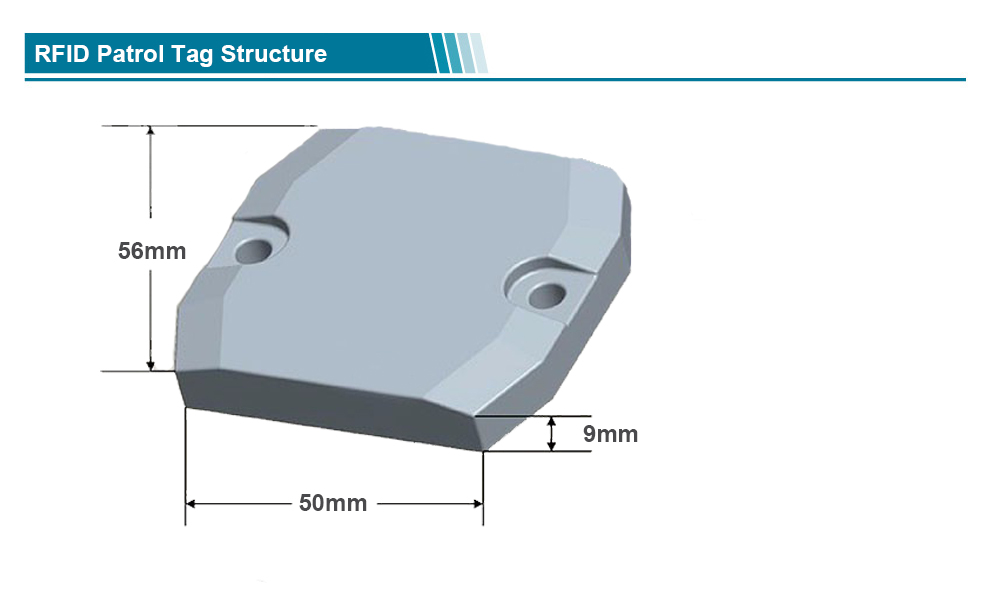

Size56*50*9mm and customized are available
Antenna Materialcopper coil
PrintingSilk screen printing

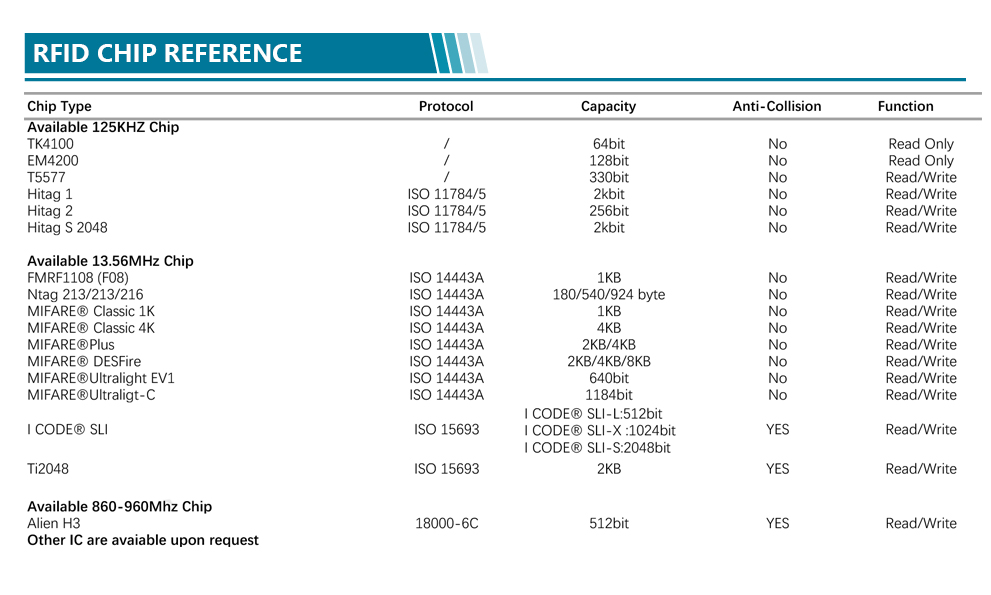

Chips Option

TK4100 ,EM4200 ,T5577 ,Hitag S256, HiTag -1 ,HiTag -2 , NXP Ultralight® EV1,

MIFARE Classic®1K ,NTAG®213 ,H3 ,IMPINJ ,UCODE, etc

Working Temperature-40°C ~ +70°C
Reading distance3-5cm for low frequency and 10-30cm for uhf

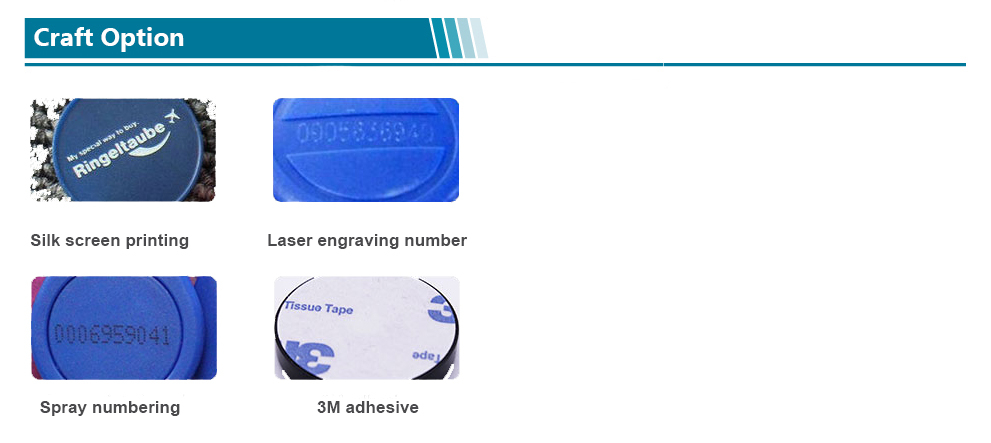

Personalizationsilk screen printing ,laser engrave , spray numbering ,
Package100pcs /oppbag , 2000pcs /carton
ShipmentBy Express, by air, by sea
Applicationsecurity checkpoint , guard tour system , door control access ,school , tracking ,etc



Normally ,this rfid patrol guard tag is small and easy to operate when making them as checkpoint application . By implementing RFID smart patrol guard tour system  ,we are ensured of accurate ,unbiased information on actual partrols of business premises . We can install these patrol tags according to different enrivonment some special metal environment you have to set up ferrite material ( anti-metal material ) to ensure they can work well .


Applications ;

.Patrol guard tour system or security checkpoint

.Logistic trakcing

.door control access

.Identification

.Iventory tracking and assets tracking

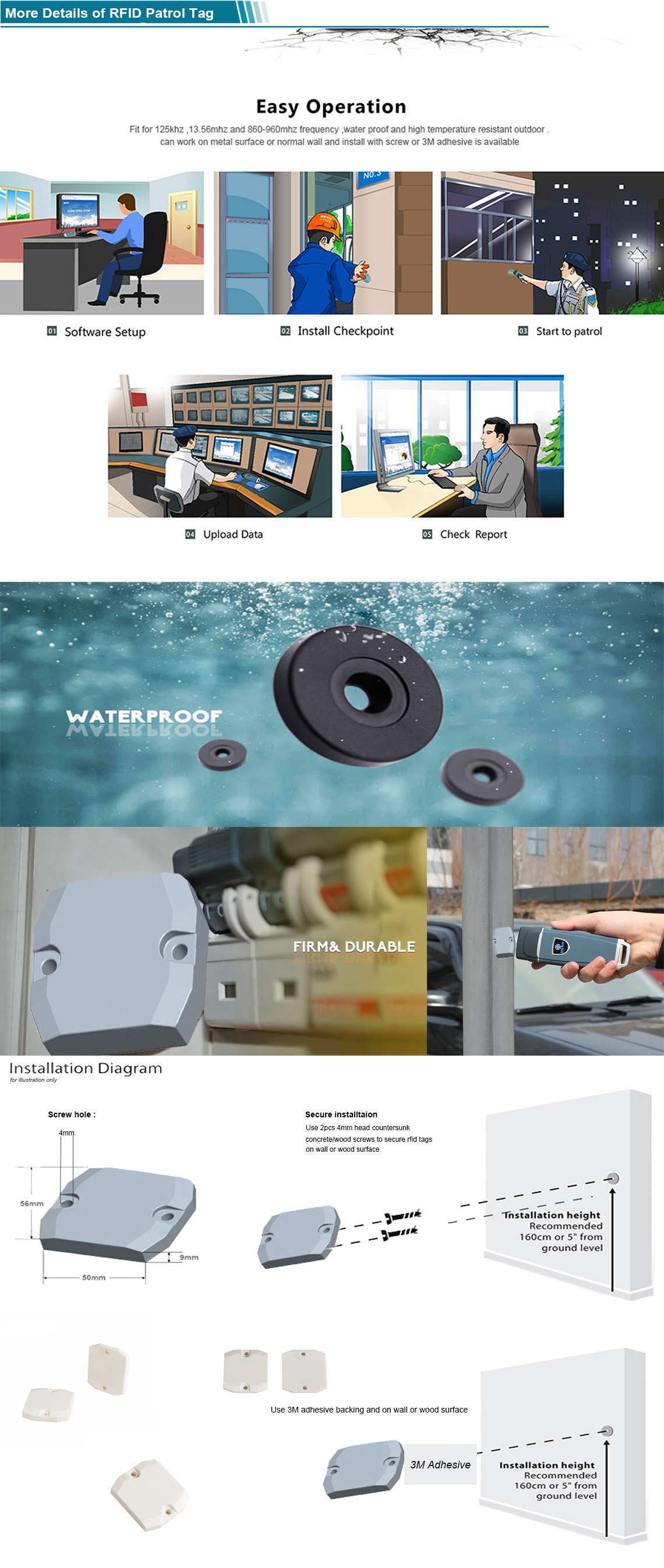

Mounted Method :


1) Screw

2) 3M adhesive backing


Zhixin RFID Tag Co.,Ltd is specializing in rfid tags , rfid wristband , rifd cards  ,rfid patrol tag , rfid laundry tag and we always believe that high quality and prefessional rfid knowledge are the best services for customers . chose us and win-win together .
