Model : ZXR20D
Material ; PCB+Plastic Case
Frequency : 125khz
Chip : TK4100 ,EM4200 ,
Size : 104*68*10mm
Certificate ;RoHS
MOQ :1pcs
Protocol ; ISO 11784/11785
Statement: Pictures above only show the product , the intellectual property rights of the logo owned by their trademark companies.

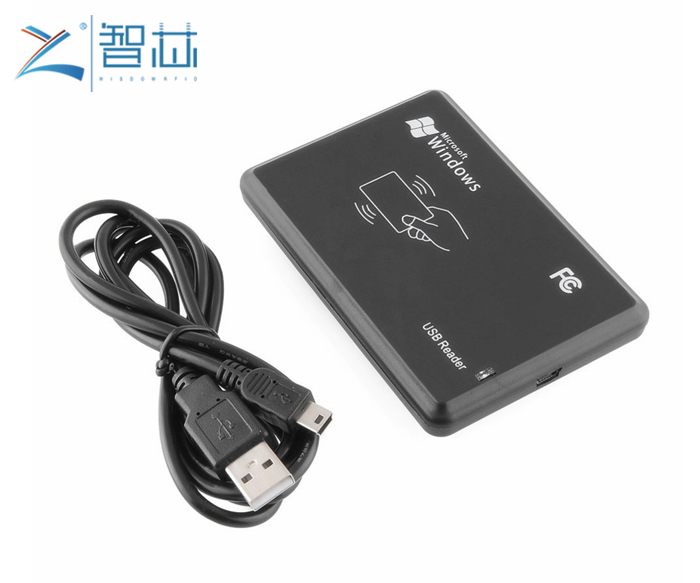

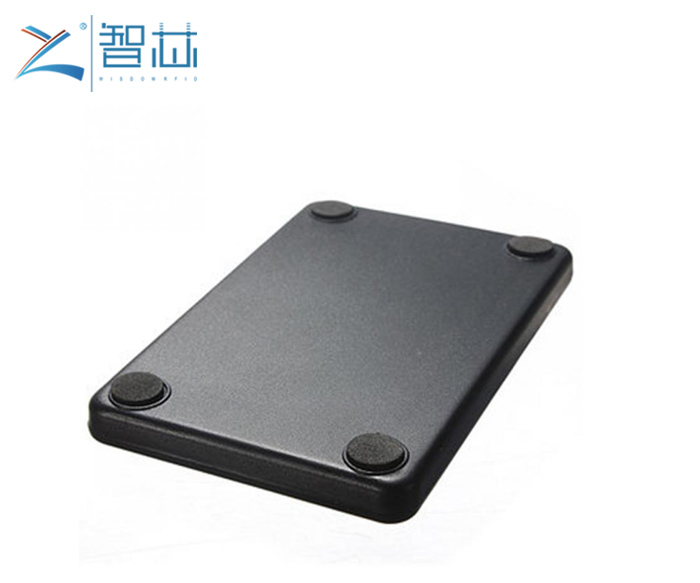

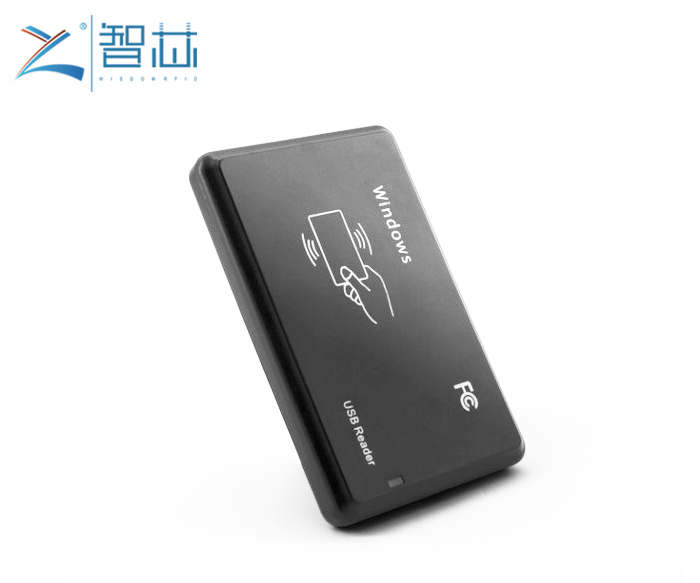

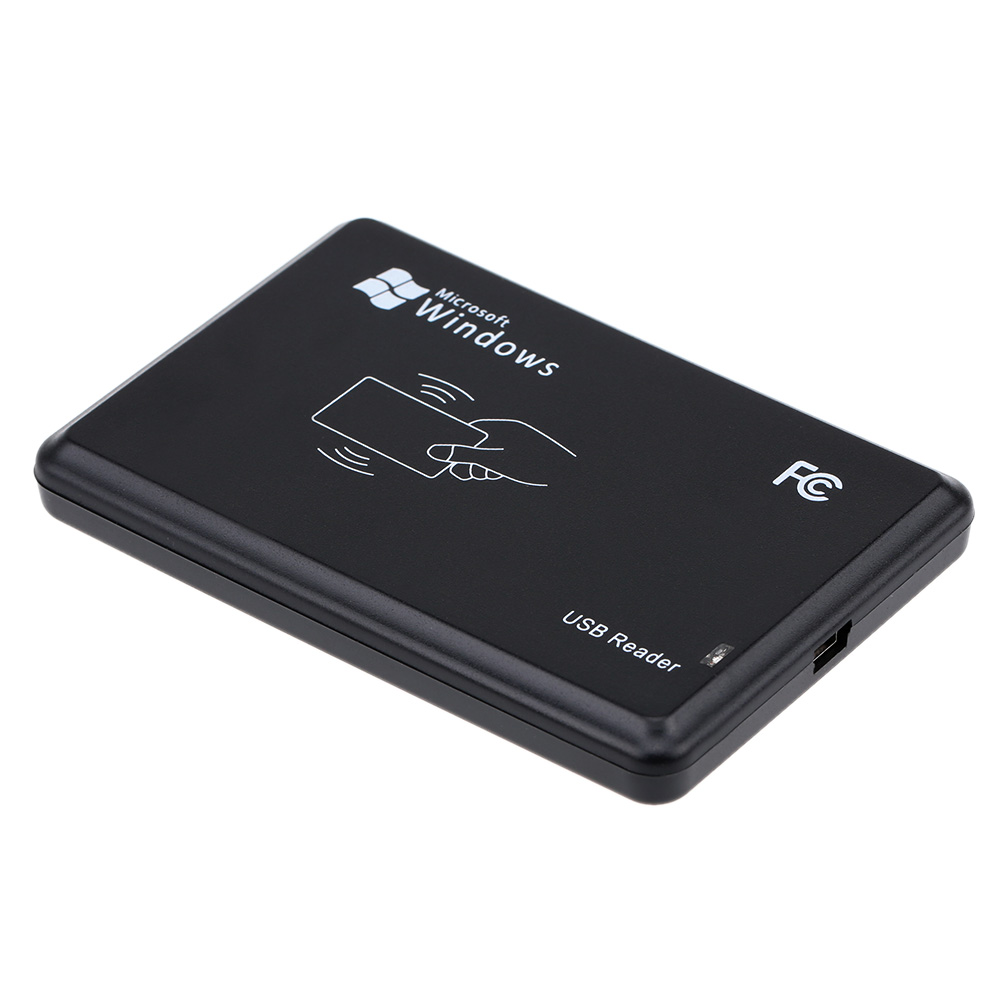

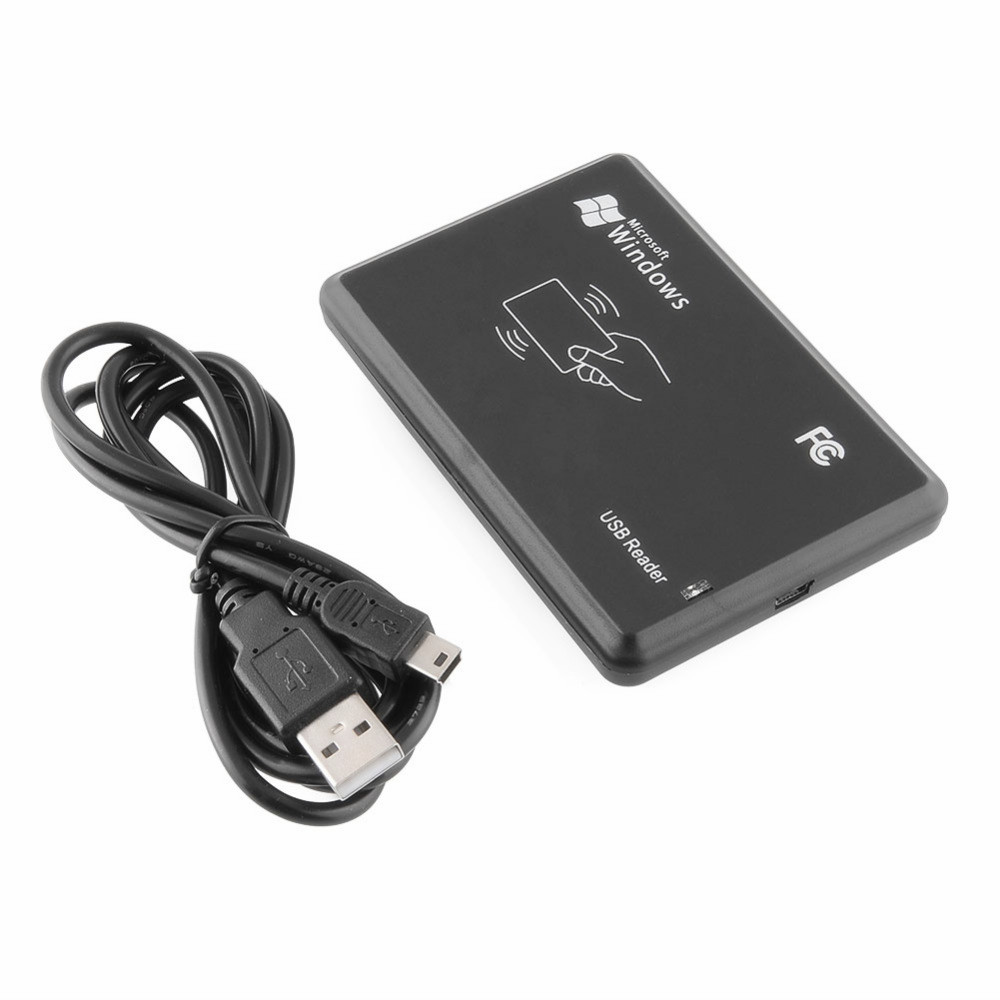

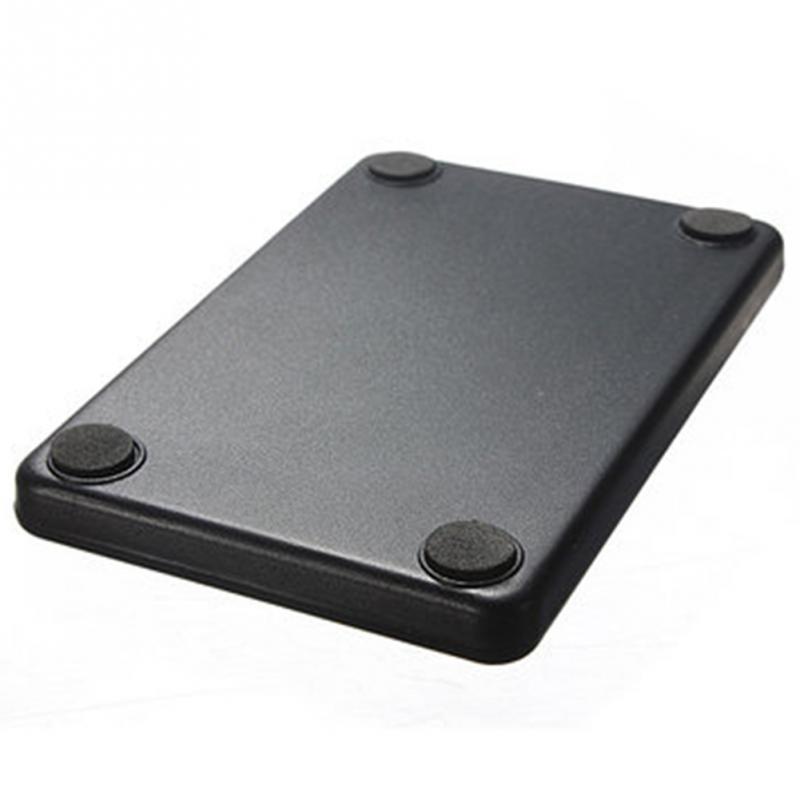

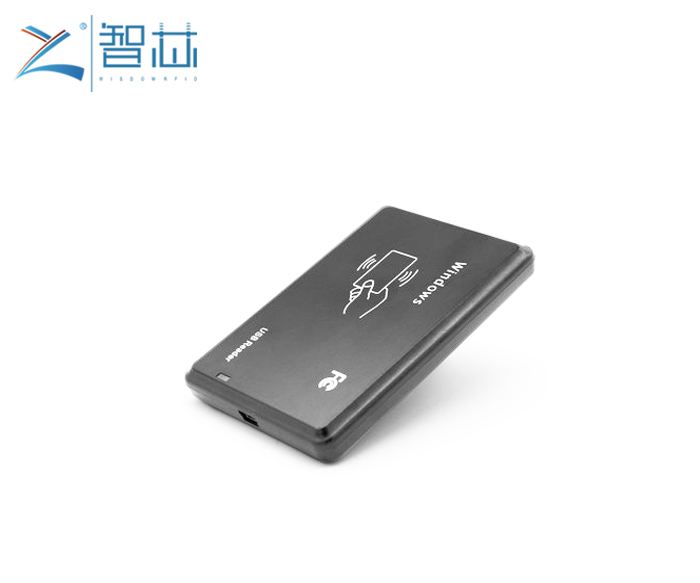

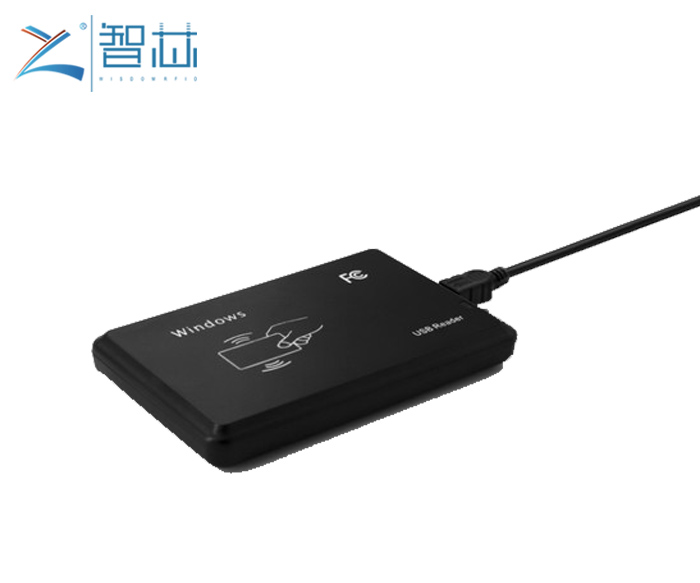

R20D is a high performance 125Khz RFID smart card Desktop reader without driver, reader distance up to 80mm, it’s not only simple aspect, but also stable and reliable data. Widely used for RFID Radio Frequency Identification system and project, Such as Automated parking management system, Personal identification, Access controller, Production Access control, etc
Ⅰ Technical Parameters
| Item | Parameters |
| Product | R20D 125Khz Door Control Access LF Card Read Only Reader |
| Model | R20D(LF-ID Reader) |
| Frequency | 125Khz |
| Support cards | Em4200,TK4100,SMC4001 and compatible card |
| Output format | 10 digit dec(Defoult output format)(Allow user to customize the output format) |
| Size | 104mm×68mm×10mm |
| Colour | Black |
| Interface | USB |
| Power Supply | DC 5V |
| Operating Distance | 0mm-100mm(related to the card or the environment) |
| Service Temperature | -10℃ ~ +70℃ |
| Store Temperature | -20℃ ~ +80℃ |
| Working humidity | <90% |
| Read time | <200ms |
| Read interval | ＜0.5S |
| Weight | About 140G |
| Cable length | 1400mm |
| Material of reader | ABS |
| Operating System | Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android |
| Indicators | Double Color LED (Red & Green) and Buzzer (“Red” means standby, “Green” means reader success) |
Method of installation and use
1. Connect with computer through USB interface directly. When the buzzer sounded, reader into the self-inspection. And the same time, LED turn into red means standby.
2. Open the output of computer software,such as Notepad\a word document or Excel sheets.
3. The mouse in Notepad or WORD document clicking.
4. Put tag on the top of reader, the software will output a data(card number) of the tag. When reading the tag, LED light change from red to green.
Detecting device is connected
Open the Device Manager of computer, If appears Humans Input Device that means Reader has successfully into computer.
Ⅲ Precautions
1. Do not install the reader on the magnetic objects and metal objects, they will seriously affect the RF signal.
2. If after reading, the tag is still in the induction zone, the RF reader will not send data and without any hints.
Ⅳ Common problems
1. Operation without feedback: Please check whether the interface plugged in, whether the tag is a valid or whether another RF tag is within the reading range.
2. Data error: Please check Whether the mouse is moved, whether the reader is in a critical state and whether the cable length is too long.
