Model : ZXR20C
Material ; PCB+Plastic Case
Frequency : 13.56mhz ,
Chip : FM11RF08 , MIFAE CLASS®1k ,4k , Ultralight® EV1,NTAG®213 ,215 ,216 ,
Size : 104*68*10mm
Certificate ;RoHS
MOQ :1pcs
Protocol ; ISO 14443A/B or ISO 15693 is available
Model : Read only is R20C or read and re-write is W20A can be option

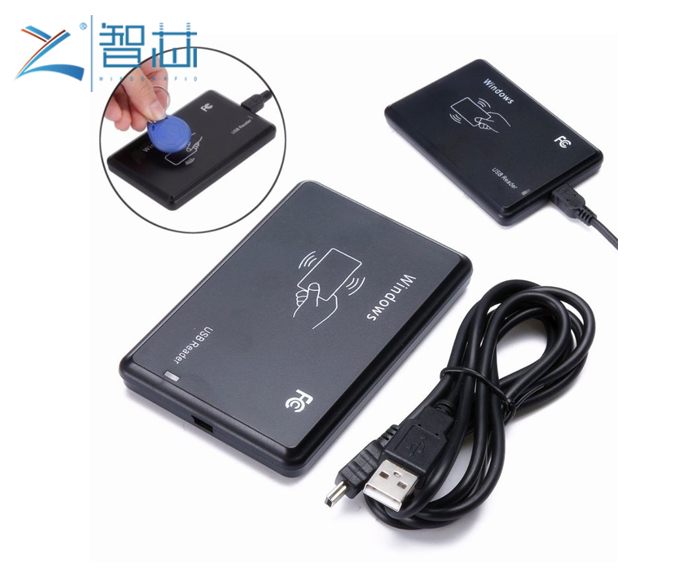

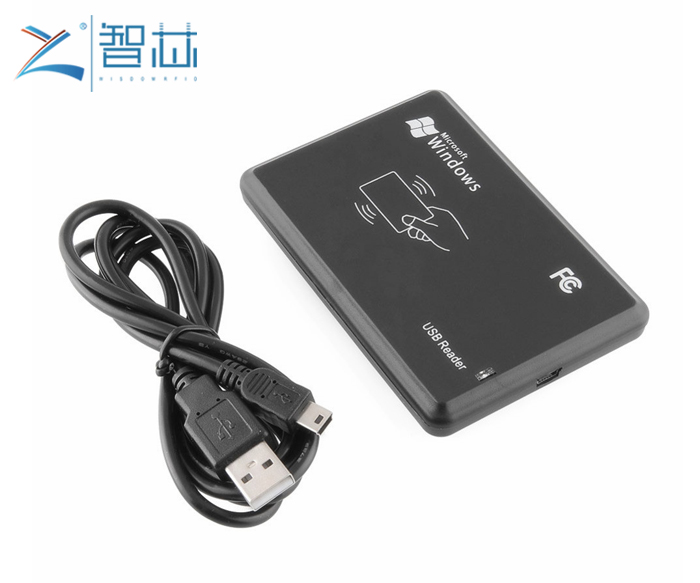

Statement: Pictures above only show the product , the intellectual property rights of the logo owned by their trademark companies.

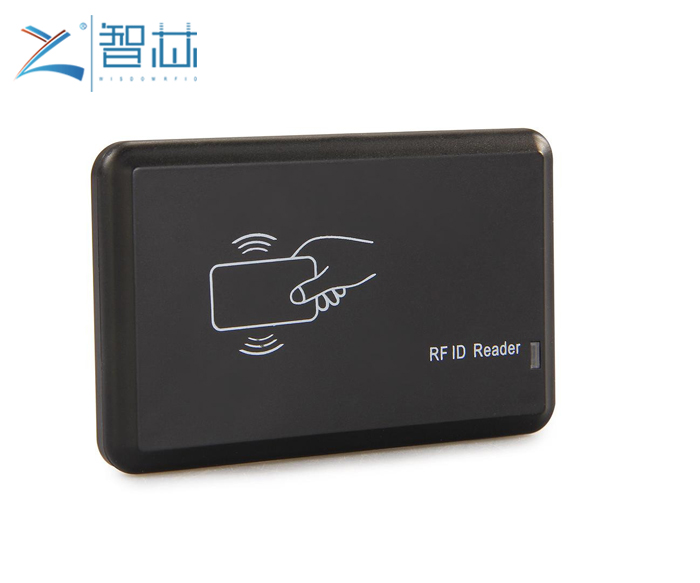

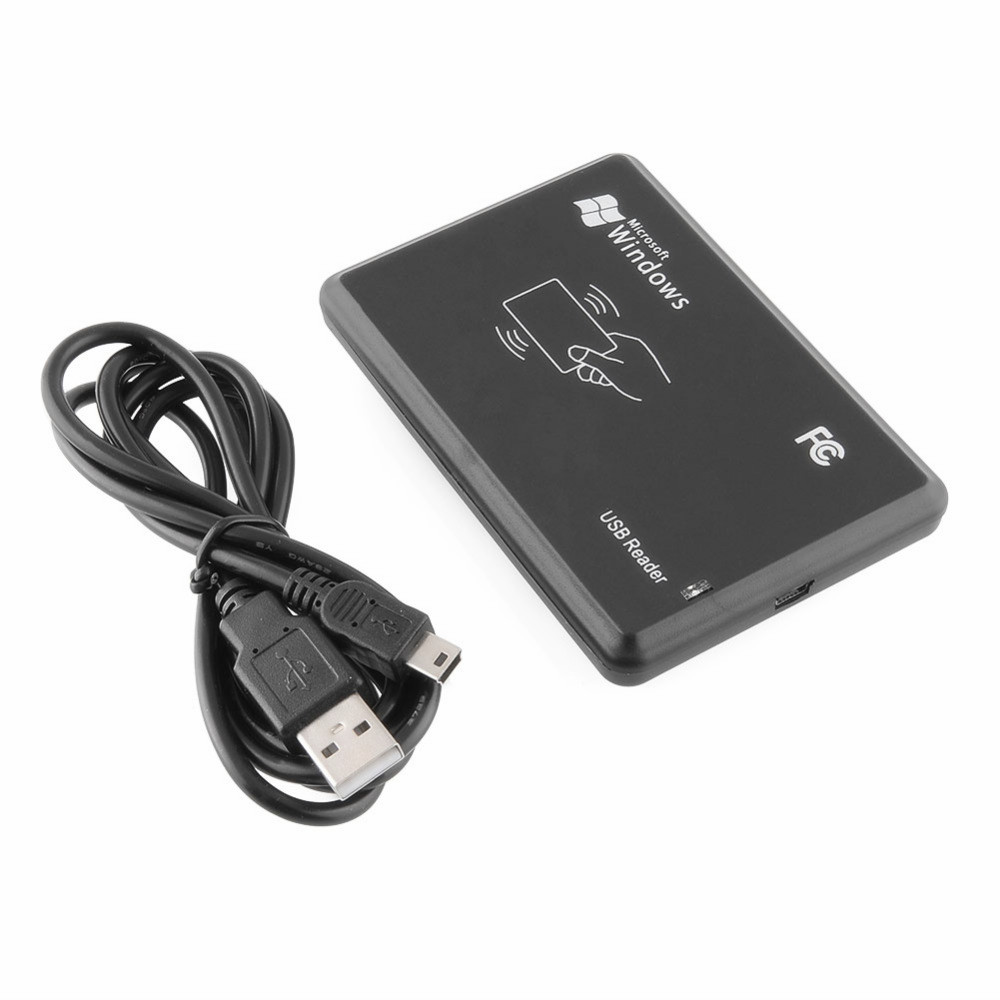

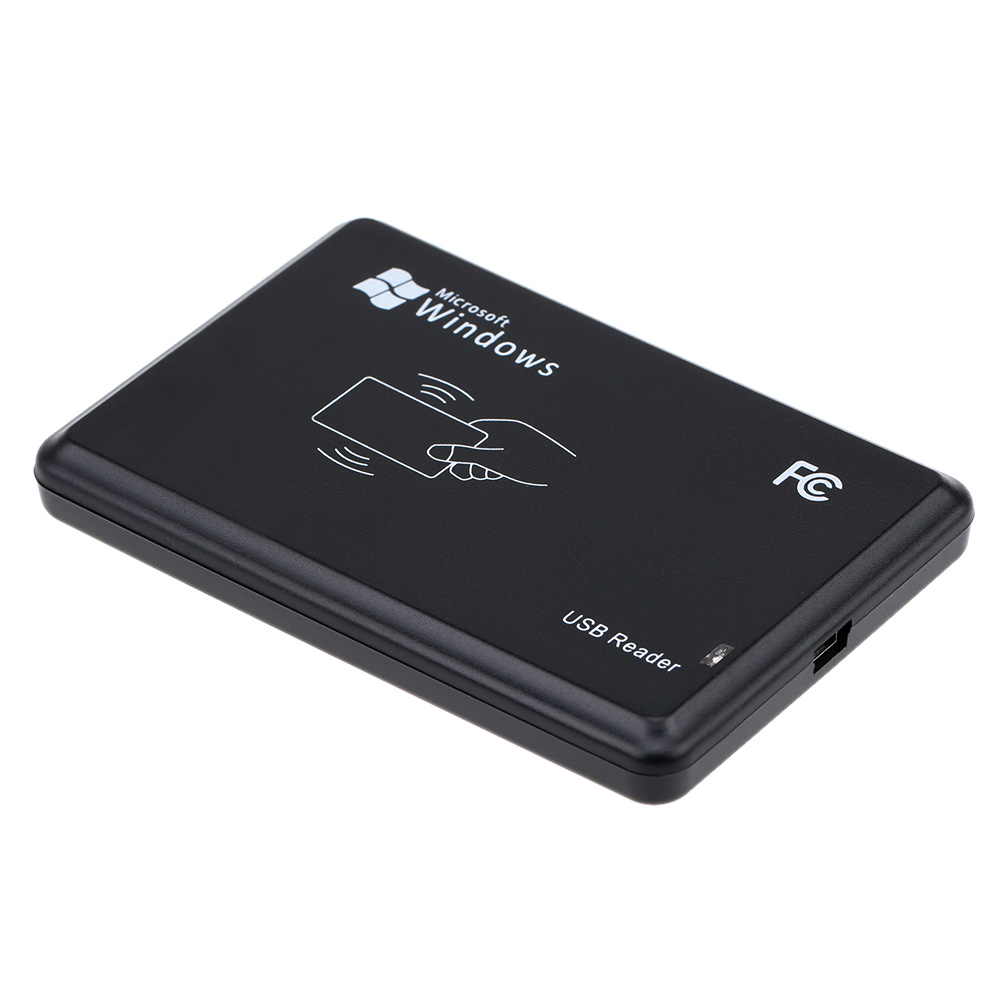

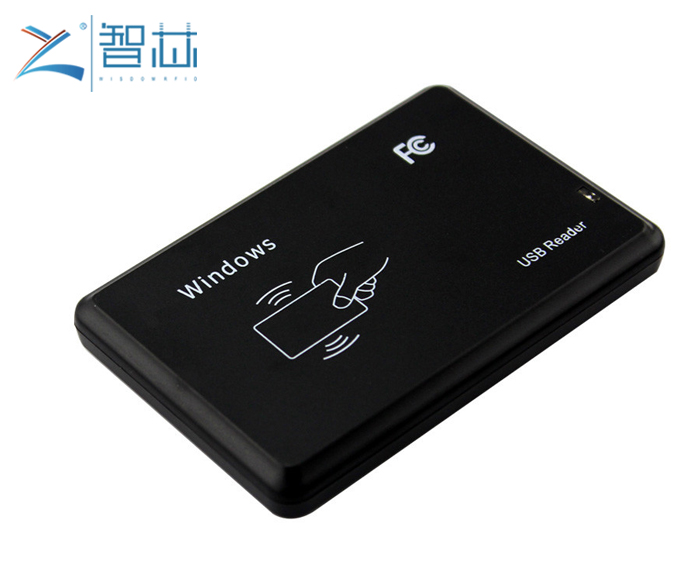

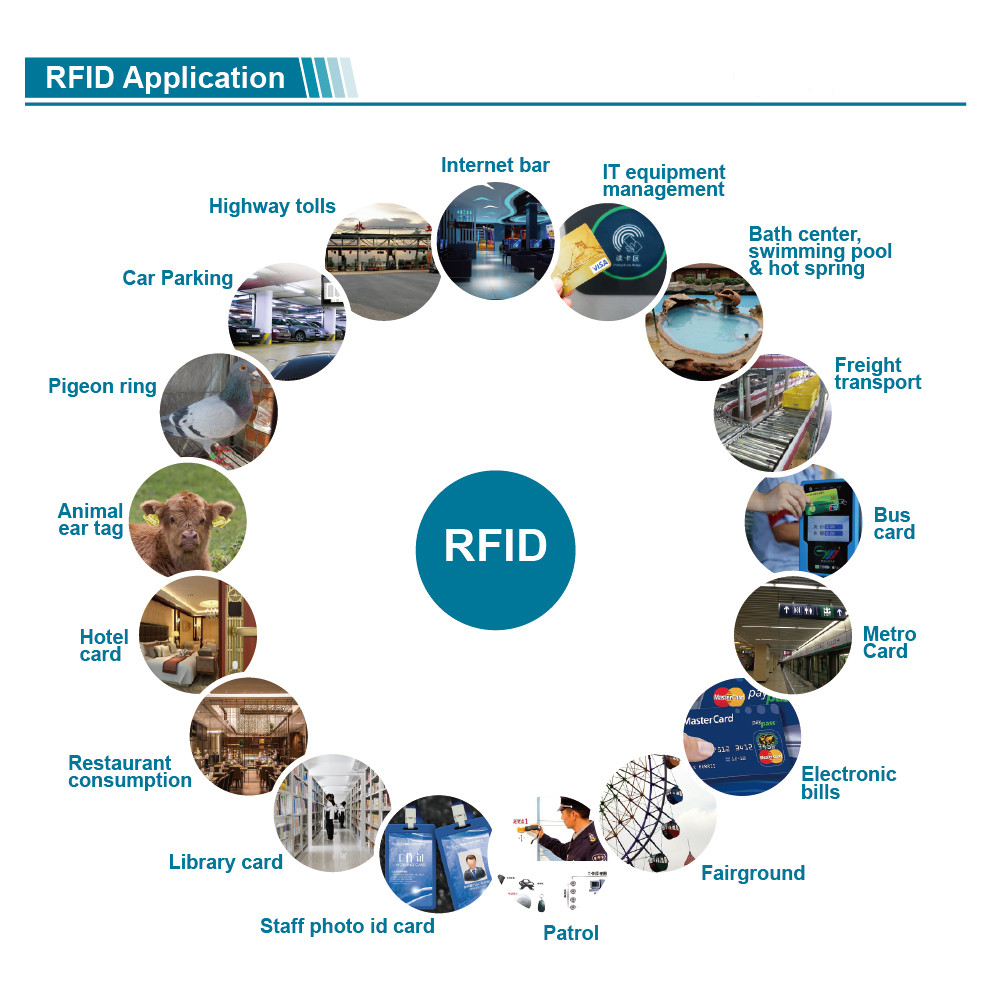

R20C is a high performance 13.56Mhz RFID smart card reader without driver, reader distance up to 80mm, it’s not only simple aspect, but also stable and reliable data. Widely used for RFID Radio Frequency Identification system and project, Such as Automated parking management system, Personal identification, Access controller, Production Access control, etc 。W20A is updated version base on R20C and read & re-write together .
| Item | Parameters |
| Product | R20C 13.56Mhz Mifare Card Read Only Reader Black Color |
| Frequency | 13.56Mhz |
| Support cards | MF(S50/S70/Ntag213/215/216.ect. 14443A protocols cards) |
| Output format | 10 digit dec (Defoult output format)(Allow user to customize the output format) |
| Size | 104mm×68mm×10mm |
| Color | Black |
| Interface | USB |
| Power Supply | DC 5V |
| Operating Distance | 0mm-100mm(related to the card or the environment) |
| Service Temperature | -10℃ ~ +70℃ |
| Store Temperature | -20℃ ~ +80℃ |
| Working humidity | <90% |
| Read time | <200ms |
| Read interval | ＜0.5S |
| Weight | About 140G |
| Cable length | 1400mm |
| Material of reader | ABS |
| Operating System | Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android |
| Indicators | Double Color LED (Red & Green) and Buzzer (“Red” means standby, “Green” means reader success) |
