ACR122U NFC Reader with USB Port

Model : ZXACR122U
Material ; PCB+Plastic Case
Frequency : 13.56mhz ,
Chip : FM11RF08 , MIFAE CLASS®1k ,4k , Ultralight® EV1,NTAG®213 ,215 ,216 ,
Size : 98*65*12.8mm
Certificate ;RoHS
MOQ :1pcs
Protocol ; ISO 14443A

  • Product
  • Parameter

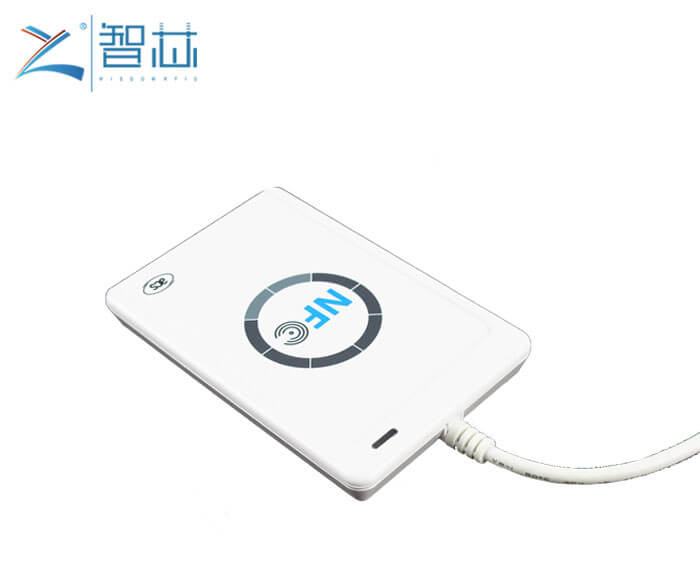

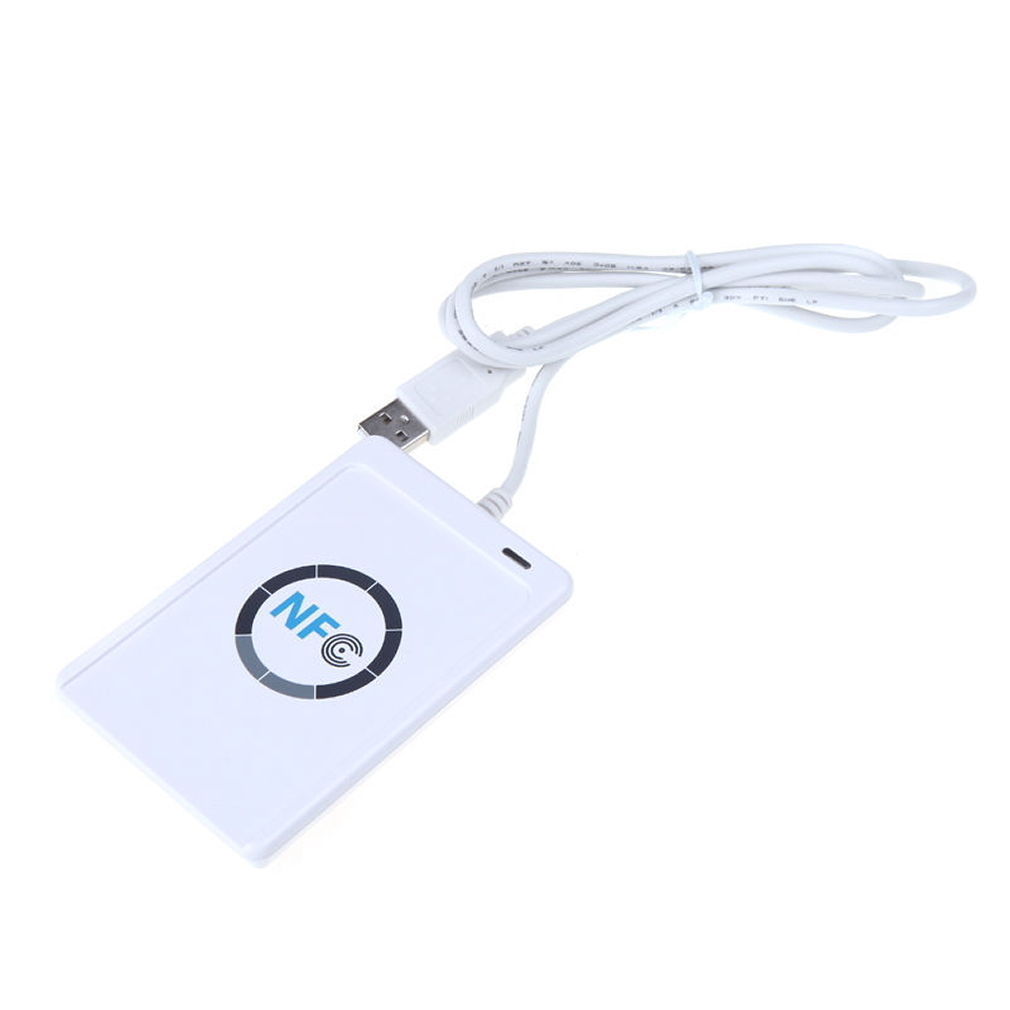

ACR122U NFC Reader with USB Port

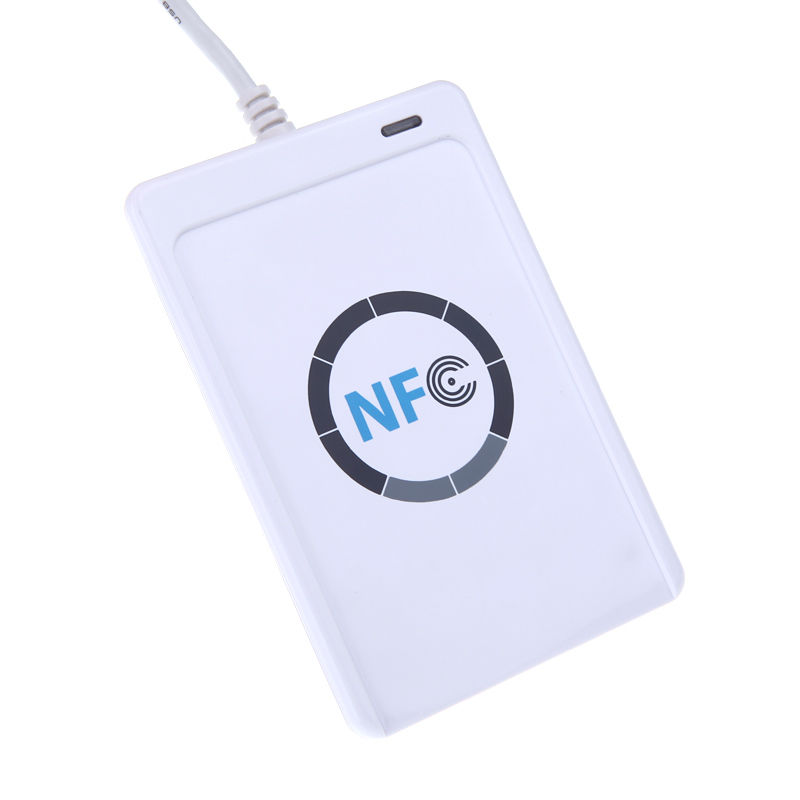

ACR122U NFC Reader with USB Port

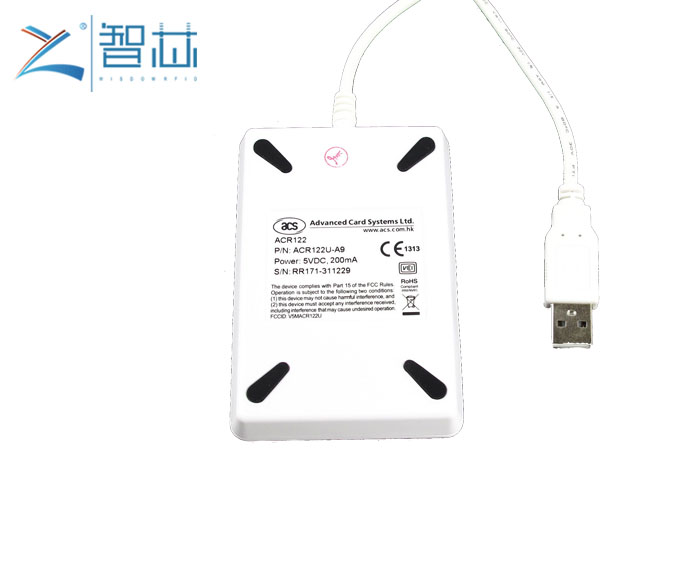

ACR122U NFC Reader with USB Port

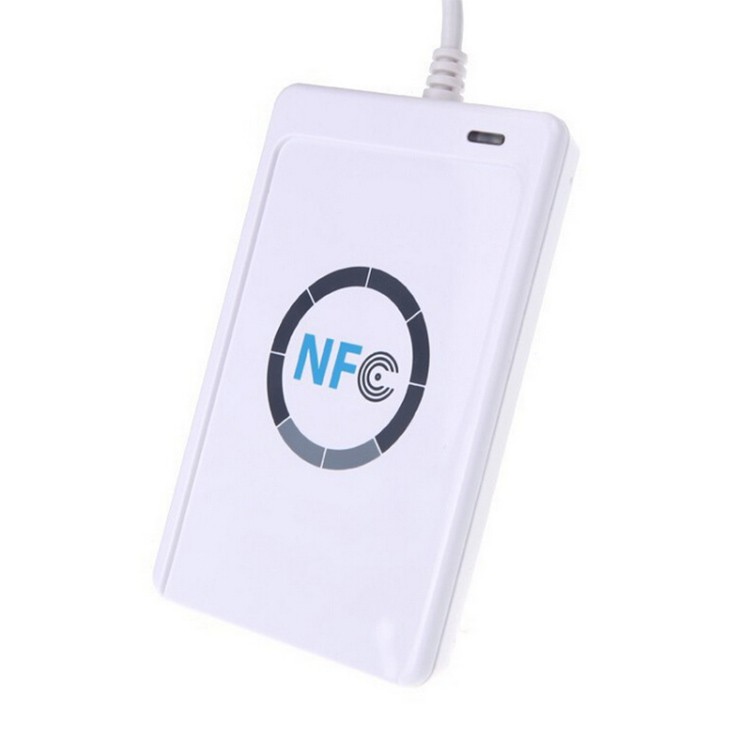

ACR122U NFC Reader with USB Port

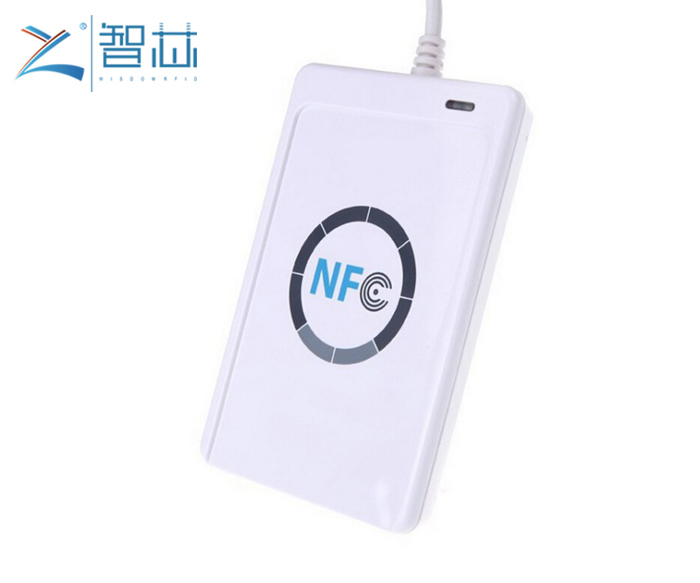

ACR122U NFC Reader with USB Port

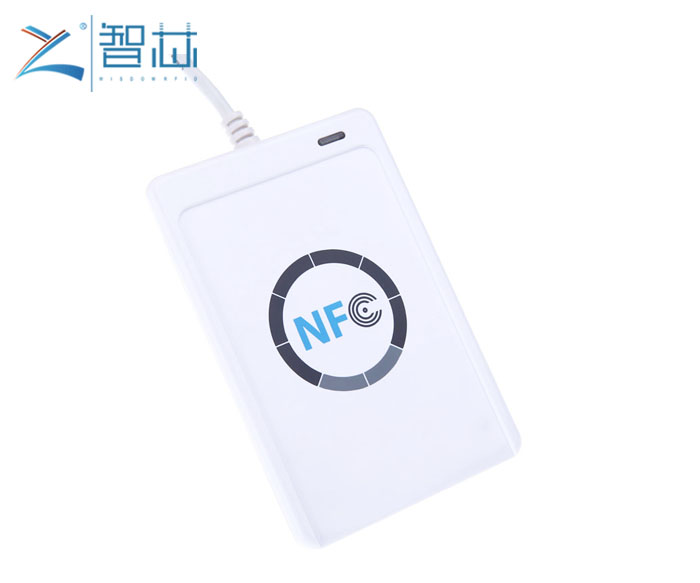

ACR122U NFC Reader with USB Port

ACR122U NFC Reader with USB Port

ACR122U NFC Reader with USB Port

Statement: Pictures above only show the product , the intellectual property rights of the logo owned by their trademark companies.

ACR122U NFC Reader with USB Port


The ACR®122U NFC Reader is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only MIFARE® and ISO 14443 A and B cards, but also all four types of NFC tags. ACR122U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can also read and write more quickly and efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use.

Dimensions98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
ITEMACR®122U NFC Reader with USB Port
Weight70.0 g
Compliance / Certifications· ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, MIC, KC, VCCI,  RoHS 2,  USB Full Speed, Microsoft® WHQL
InterfaceUSB Full Speed
Operating DistanceUp to 50 mm (depends on the tag type)
Supply VoltageRegulated 5V DC
Supply Current200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature0-60 °C
Operating Frequency13.56 MHz
Smart Card Interface Support· ISO14443 Type A & B· MIFARE· FeliCa · 4 types of NFC (ISO/IEC18092) tags
Operating System Support· Windows®· Win CE 5.0 and 6.0· Linux®· Mac OS®· Android™ 3.1 and above

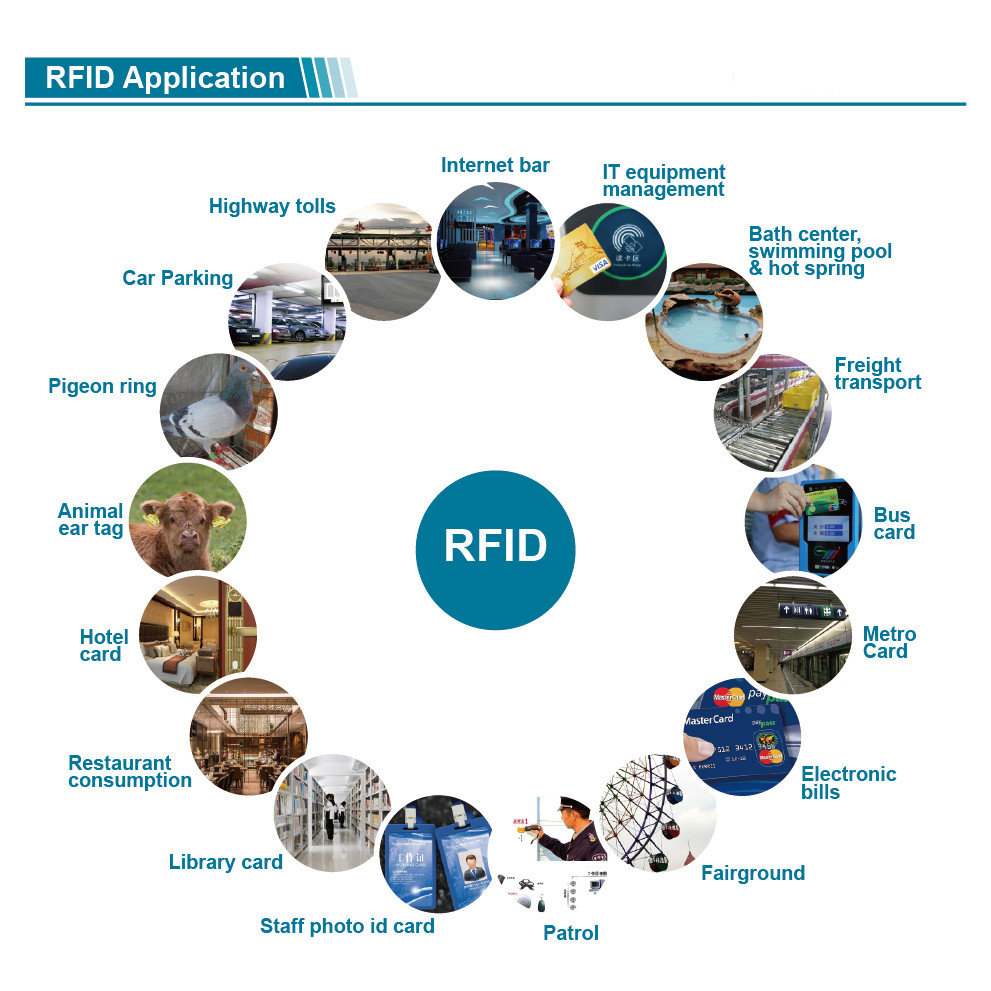

Mainly Application

●e-Government

●Banking & Payment

●e-Healthcare

●Access Control

●Network Security

●e-Purse & Loyalty

●Transportation
