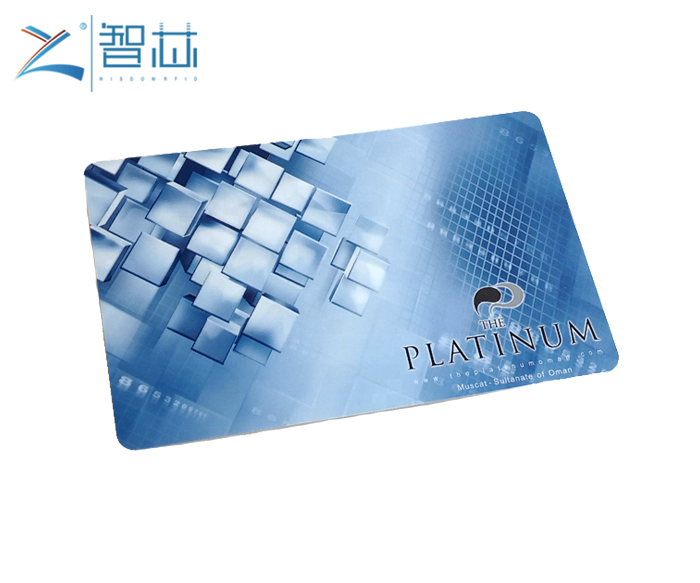

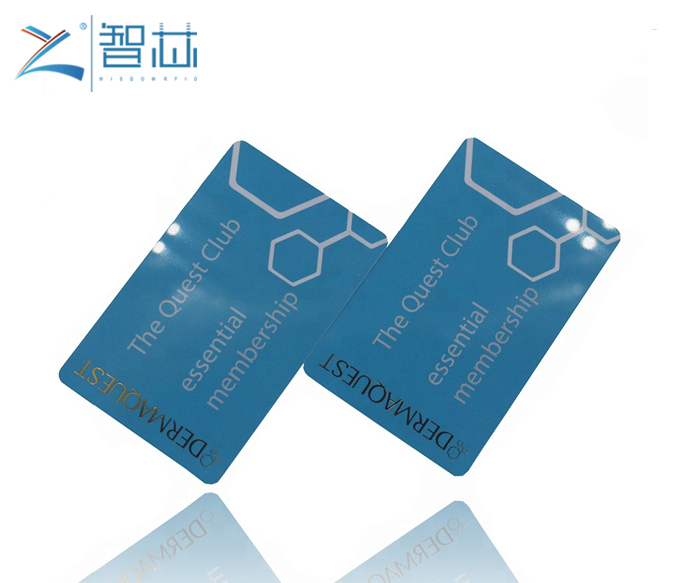

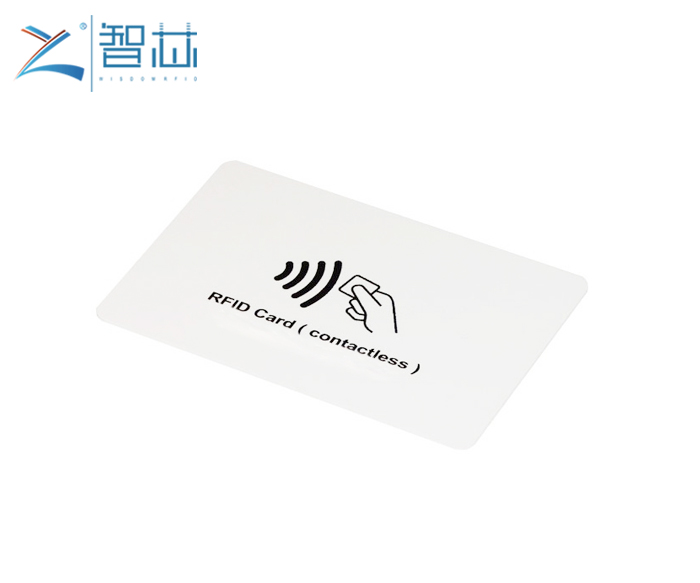

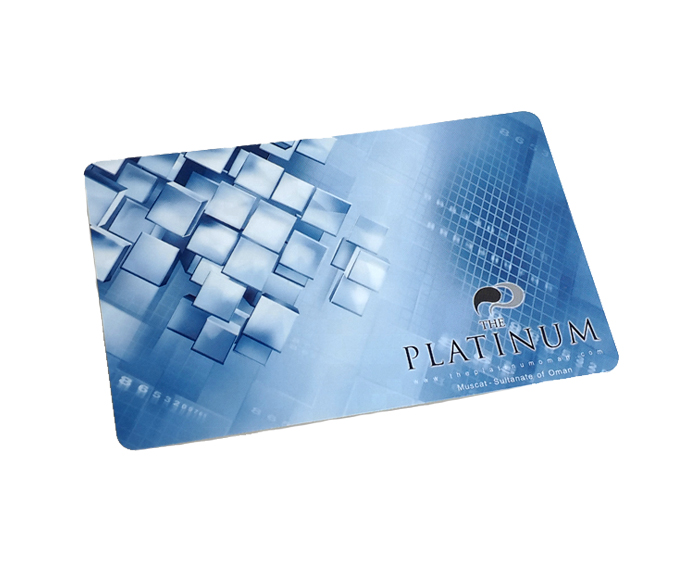

Model : ZXRHF0012
Material ; PVC , ABS or PET etc
Frequency : 13.56Mhz
Chip : NXP MIFARE Plus S/X 2k -4K , Plus EV1 ,PLus SE 1K
Size: 85.5*54mm , 0.84mm thickness
Color : offset printing full color or white without printing
Certificate ;RoHS
MOQ :1000pcs
Free samples testing is available
Wide range of application:
RFID has wide application: Highway tolls, Car parking, Pigeon ring, Animal ear tag, Hotel card, Restaurant
consumption, Library card, Staff photo id card, Patrol, Fairground, Electronoic bills, Metro Card, Bus
card, Freight transport, Bath center, swimming tool and hot spring center membership card, IT equipment
management, Internet bar. We are specializing in NXP Plus-S/X 2K or 4K rfid card with full color printing for you .
Statement: Pictures above only show the product , the intellectual property rights of the logo owned by their trademark companies.
The MIFARE Plus products use AES security for authentication , data integrity and encryption that is based on open , global stadards . It has two version one for Plus X and another is Plus S . Thye are widely using for public transportation , access management ,electronic toll collection , car parking and loyalty programs . 7-Byte Unique identifier (UID) or 4-Byte Non Unique identifier (NUID) and random IDs . It is the only mainstream IC compatible with MIFARE Classic® and MIFARE Classic 4k which offers an upgrade path for existing infrastructures and services . Shenzhen ZhiXin RFID Tag Co.Ltd is specializing in rfid cards , nfc sticker label , rfid wristband , nfc metal card , nfc wood card ,etc . we can offer our customers full color printing , serial number , barcode , hot-stamping , magnetic strip .and any questions please contact us and free sample testing is available .
| Product | Transport Ticketing RFID NXP DESFire Light Chip Card |
| Material | PVC, ABS, PET |
| Size | Stander size(credit card size):85.5*54*0.84mm or customized |
| Surface Finishing | Glossy/Matte/Frosted/Transparent |
| Printing | thermotransfer , offset full color printing , silkscreen |
| Chips Option | NXP MIFARE DESFire Light |
| Memory | 640 byte |
| Mechanical Stability (Bending ,Torsion) | according to ISO 14443A |
| Operating Temperature | -25°C to +50°C (according to ISO 7810) |
| Storage Temperature | -25°C to +50°C (according to ISO 7810) |
| Operating Frequency | 13.56MHz |
| Typical programming cycles(at +25°C) | 100,000 |
| Data retention time (at +55°C ) | > 10 years |
| Reading distance | 3-8cm |
| Personalization | Serial number, barcode, magnetic stripe, QR code, encoding, etc |
| Package | In smaller white box, then in carton |
| Shipment | By Express, by air, by sea |
| Application | event tickets , hotel card ,door control access ,transportation ,etc .. |
Feature :
2 kB or 4 kB EEPROM
Simple fixed memory structure compatible with MIFARE Classic 1K and MIFARE Classic 4K
Memory structure identical to MIFARE Classic 4K (sectors, blocks)
Access conditions freely configurable
Supports ISO/IEC 14443 Type A UIDs (4-byte UID, 4 Byte NUID, 7-byte UID), optional support of random IDs
Multi-sector authentication, Multi-block read and write
AES-128 used for authenticity and integrity
Anti-tearing mechanism for writing AES keys
Keys can be stored as MIFARE CRYPTO1 keys (2 × 48-bit per sector) and as AES keys (2 × 128-bit per sector)
Basic support of virtual card concept
Communication speed up to 848 kbit/s
Number of single write operations: 200000 cycles (typical)
Common Criteria Certification: EAL4+
TARGET APPLICATIONS
Public transportation
Access management, e.g. employee, school, or campus cards
Electronic toll collection
Car parking
Loyalty programs
Why Chose US
1: We have our own factory and avoid any reseller for saving cost and directly benifits for customers
2: All RFID products we have approved testing certificates and experienced to ship to USA , Europe ,South America ,Africa ,and Asia areas .
3: Strictly in quality control and excellence in printing
FAQ
1: Would you are manufacturer or reseller for these kind of RFID products
- We are manufacturer in Shenzhen city of China and our headquater is card factory for 17 years experience and also have invested RFID / NFC labels factory .
2: Would you manufacture another rfid chip cards
- Yes , we are also producing many kinds of rfid chip in now popular rfid market , widely use for e-payment , door control access , hotel management , hospital , etc .
3: How about your export experience for RFID products
- We have worked with USA , Europe , South America , Asia customers and all products are working good after we get feedbacks from our clients
4: How about your payment term
- We can accpet TT , Western Union , Paypal or L/C ,it will depend on quantites of projects
5: Normally production time or leadtime
- 10-12 working days and some special complicated rfid products will fix leadtime with our engineers .
6: How about shipping
- We can arrange courier such as DHL , FedEx , UPS or TNT , seafreight and truck ,etc . It will depend on customer 's requested and trade term in contract .
7: What the difference with RFID and NFC
- RFID is widely technology than NFC and includes LF ,HF and UHF , NFC only for 13.56MHz chips and specailizing in shorter reading distance in e-payment .
8: What else we should provide before ordering
- You can send us vector ( not only jpg picture ) file such as Adobe Illustrator , PSD or PDF we can re-edit file and fonts inside for our printing publish and also should
tell us how about your rfid products application , quantities , frequency , chips etc if we can get full information can help us to make right price for you and comeptitive
9：Would you offer free samples
- You can ask for free samples for testing and shipping cost collection , if customized printing or size , shape will take sample making cost .
We are willing to work with you and any interested projects or questions please feel free to contact us with info@zxrfid.com or jimmy@zxrfid.com
